Overview - selector mechanism

t	→ Chapter „Overview - selector mechanism“

t	→ Chapter „Exploded view - gear knob with gear lever boot“

t	→ Chapter „Removing and installing gear knob with gear lever boot“

t	→ Chapter „Removing and installing noise insulation“

t	→ Chapter „Exploded view - selector mechanism“

t	→ Chapter „Removing and installing selector mechanism“

t	→ Chapter „Adjusting selector mechanism“

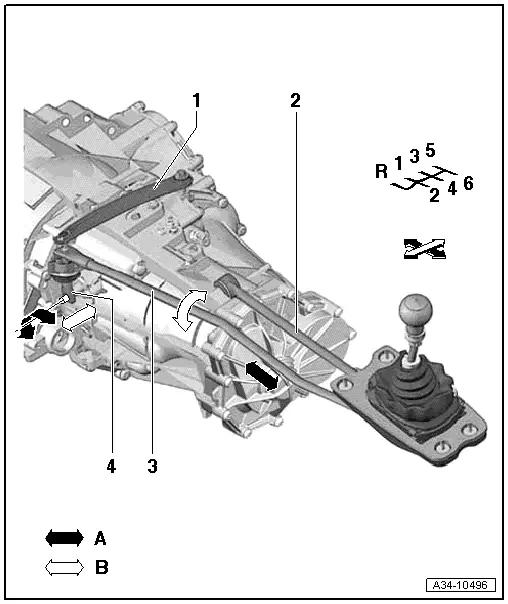

-Arrow A- gear selection movement

-Arrow B- gate selection movement

1 -	Connecting rod

2 -

Push rod

3 -	Selector rod

4 -	Gearbox selector lever
