A4 Mk3

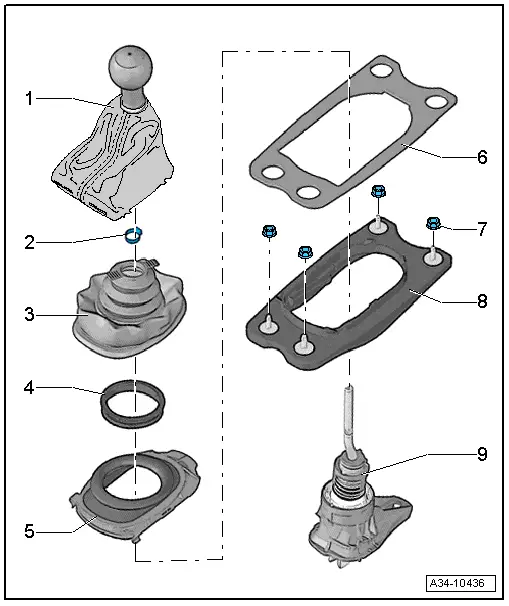

| Exploded view - gear knob with gear lever boot |
| 1 - | Gear knob |
| q | With gear lever boot |
| q | Removing and installing → Chapter |
| 2 - | Clip |
| q | Secures gear knob to gear lever |
| q | Secure with hose clip pliers -V.A.G 1275- |
| 3 - | Boot |
| q | Only supplied together with support ring → Item |
| q | Removing and installing → Chapter together with noise insulation → Item |
| 4 - | Support ring |
| q | Only supplied together with boot → Item |
| 5 - | Noise insulation |
| q | Removing and installing → Chapter |
| 6 - | Gasket |
| 7 - | Nut |
| q | 8 Nm |
| 8 - | Mounting bracket |
| q | For gear lever bearing |
| 9 - | Gear lever with gear lever bearing |
