Removing and installing gearbox neutral position sender -G701- l  Only in vehicles with start/stop system l  Gearbox installed

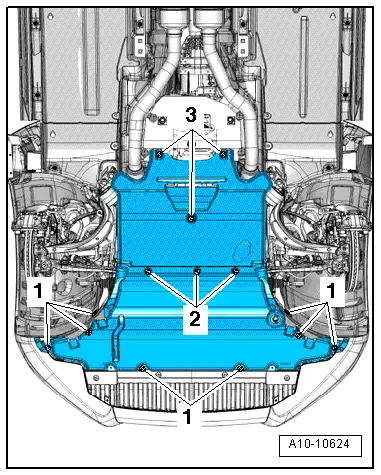

Removing –  If fitted, remove rear noise insulation (loosen fasteners -2- and -3-).

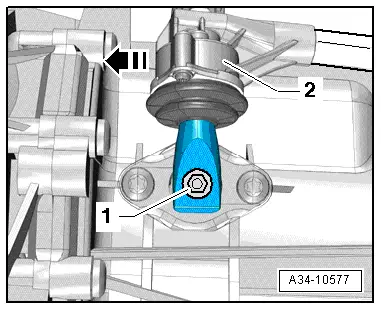

–  Engage 4th gear by shifting gearbox selector lever -2- forwards in direction of -arrow-.   Note -Item 1- can be disregarded.

–  Unplug electrical connector from gearbox neutral position sender -G701--1-.

–  Remove bolt -arrow- and pull out gearbox neutral position sender -G701--A-.   Note Sealing cap -B- remains fitted. Installing –  Insert gearbox neutral position sender -G701--A- with new O-ring in sealing cap -B- for selector shaft. –  Tighten new bolt -arrow- to specified torque → Anchor.

–  Attach connector to gearbox neutral position sender -G701--1-. –  Install noise insulation → Rep. gr.66. Tightening torque

Component	Nm
Gearbox neutral position sender -G701-	10 + 45°
l  Renew bolt
