A4 Mk3 Manual Gearbox Maintenance: Removing and Installing Gear Knob

Removing and installing gear knob with gear lever boot
Removing and installing gear knob with gear lever boot
  Note
The gear knob is removed together with the gear lever boot.
Special tools and workshop equipment required

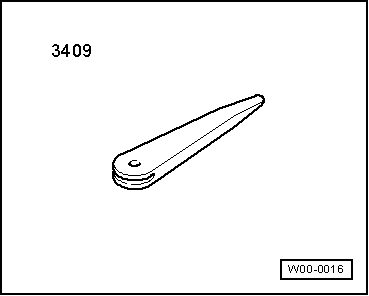

t  Removal wedge -3409-
  W00-0016

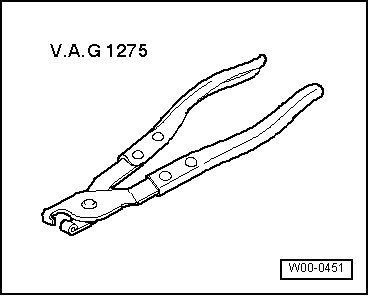

t  Hose clip pliers -V.A.G 1275-
  W00-0451
Removing
–  Prise out gear lever boot using removal wedge -3409--arrows- and pull upwards to detach.
  A34-10440
–  Pull boot up and over gear knob.

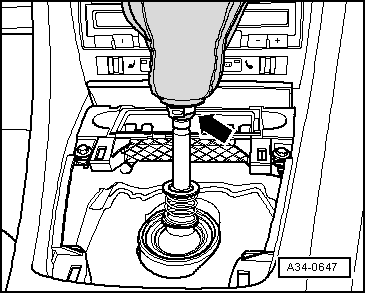

–  Open clip -arrow- and pull off gear knob together with boot.
Installing
Perform installation in reverse sequence of removal.
–  Secure clip -arrow- using hose clip pliers -V.A.G 1275-.
  A34-0647
