A4 Mk3

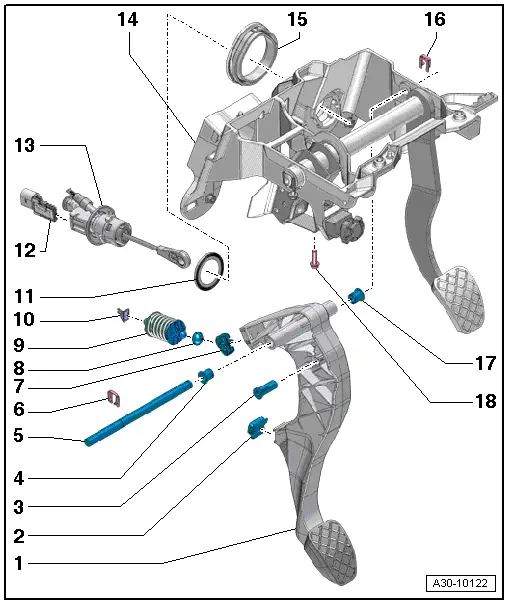

Exploded view - pedal cluster (RHD vehicles)
Exploded view - pedal cluster (RHD vehicles)
  Caution
Risk of accident.
The travel of the brake pedal must not be restricted with additional floor mats or the like.
  Note
t  Apply grease -G 000 450 02- to all bearings and contact surfaces.
t  Make sure that no brake fluid escapes into the footwell, the plenum chamber or onto the gearbox below. If this does happen, clean the affected area thoroughly.

1 - Clutch pedal
2 - Clutch pedal stop
3 - Locking pin
q   For clutch master cylinder
4 - Bearing bush
5 - Pivot pin for clutch pedal
6 - Retaining clip
7 - Bearing
q   Note different bearing positions in clutch pedal → Anchor
8 - Bearing shell
9 - Over-centre spring
q   Black side points towards clutch pedal
q   Note different bearing positions in clutch pedal → Fig.
q   For correct version, refer to → Electronic parts catalogue
q   Remove and install with assembly clip -T40025-
10 - Bearing shell
11 - Seal
q   Renew
12 - Clutch position sender -G476-
q   Clutch pedal switch -F36- and clutch pedal switch for engine start -F194- are integrated
q   Can only be renewed together with clutch master cylinder → Item
13 - Clutch master cylinder
14 - Mounting bracket
q   With brake pedal
15 - Seal
16 - Retaining clip
17 - Bearing bush
18 - Bolt
q   2x
q   8 Nm

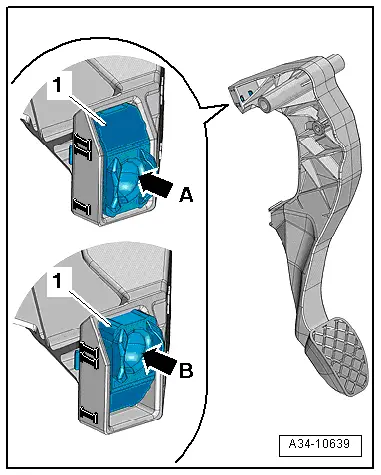

Installing over-centre spring
–  Clip bearing -1- into corresponding position on clutch pedal.
  A34-10639
Bearing positionVehicles with:
l  „I“-arrow A-:
t  3.0 ltr. TFSI engine
t  3.0 ltr. TDI engine
t  4.2 ltr. FSI engine
l  „II“-arrow B-
t  Not used on vehicles with »0B4 gearbox«

–  Insert over-centre spring with assembly clip -T40025-.
l  White side of over-centre spring faces bearing -1-.
