A4 Mk3

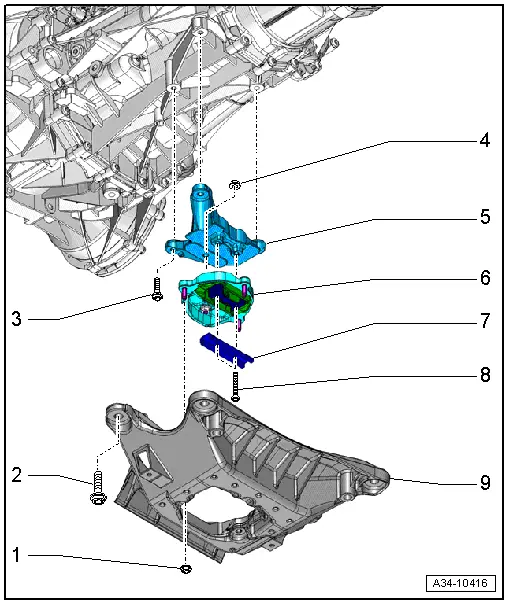

| Exploded view - tunnel cross member, gearbox mounting and gearbox support |
| 1 - | Nut |
| q | 20 Nm |
| 2 - | Bolt |
| q | 70 Nm |
| 3 - | Bolt |
| q | 40 Nm |
| 4 - | Nut |
| q | 20 Nm |
| 5 - | Gearbox support |
| q | Removing and installing → Chapter |
| 6 - | Gearbox mounting |
| q | Removing and installing → Chapter |
| 7 - | Stop (bottom) |
| q | For gearbox mounting |
| 8 - | Bolt |
| q | 20 Nm + 90° |
| q | Renew |
| 9 - | Tunnel cross member |
| q | Removing and installing → Chapter |
