A4 Mk3

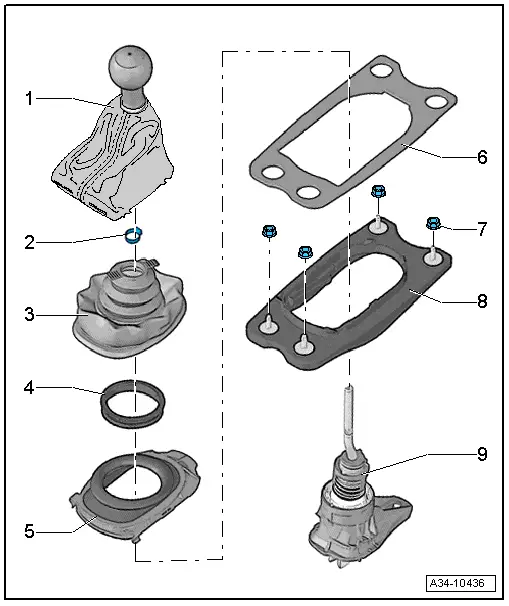

Exploded view - gear knob with gear lever boot |
1 - | Gear knob |
q | With gear lever boot |
q | Removing and installing → Chapter |
2 - | Clamp |
q | Secures gear knob to gear lever |
q | Secure with hose clip pliers -V.A.G 1275- |
3 - | Boot |
q | Only supplied together with support ring → Item |
q | Removing and installing → Chapter together with noise insulation → Item |
4 - | Support ring |
q | Only supplied together with boot → Item |
5 - | Noise insulation |
q | Removing and installing → Chapter |
6 - | Gasket |
7 - | Nut |
q | 8 Nm |
8 - | Mounting bracket |
q | For gear lever bearing |
9 - | Gear lever with gear lever bearing |
