Exploded view - centre differential housing - bolted propshaft > < Renewing oil seal for selector shaft

A4 Mk3

Renewing input shaft oil seal
Renewing input shaft oil seal
Special tools and workshop equipment required

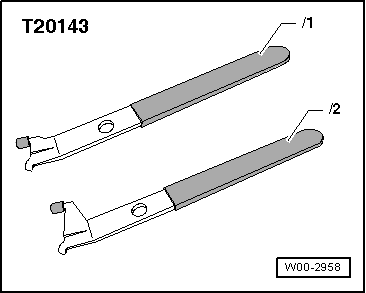

t  Extractor tool -T20143/2-
  W00-2958

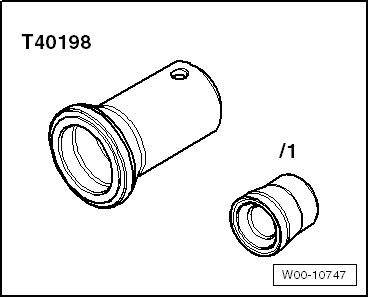

t  Assembly tool -T40198-
t  Sealing grease → Electronic parts catalogue
Procedure
l  Gearbox is secured to engine and gearbox support -VAS 6095- → Chapter.
–  Remove flywheel → Chapter.
  W00-10747

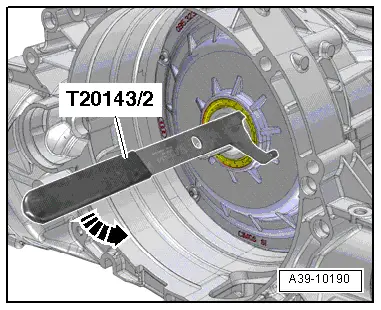

–  Prise out oil seal for input shaft with extractor tool -T20143/2-.
  A39-10190

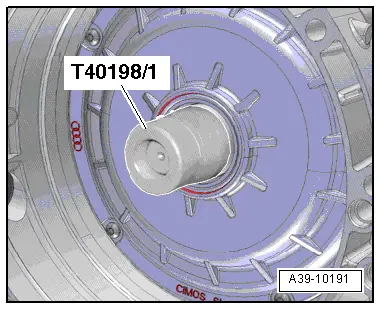

–  Fit guide sleeve -T40198/1- onto input shaft.
–  Lightly oil outer circumference of new oil seal.
–  Pack space between sealing lip and dust lip half full with sealing grease; for sealing grease refer to → Electronic parts catalogue.
–  Fit oil seal onto guide sleeve.
l  Installation position: open side of oil seal points towards gearbox
  A39-10191
–  Drive in oil seal onto stop using assembly tool -T40198- Take care to keep seal straight when installing.
–  Install flywheel → Chapter.
  A39-10192
