Installation is carried out in reverse sequence; note the following: |
Note Renew circlip for flange shaft (right-side). |
–
| Clamp flange shaft in vice, using jaw protectors. Use new circlip -A- to press old circlip out of groove in flange shaft. |
–

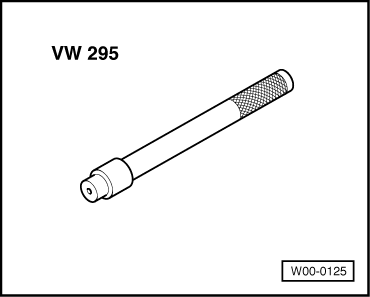

| Drive in flange shaft (right-side) with drift -VW 295-. |
–

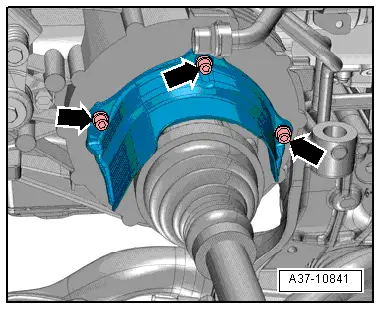

| Install heat shield for drive shaft → Fig.. |
–

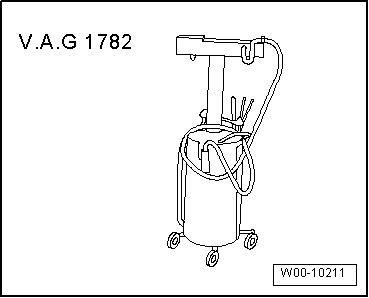

| Checking oil level in front final drive and topping up → Chapter. |
|
|
|
