Draining torque converter

Special tools and workshop equipment required

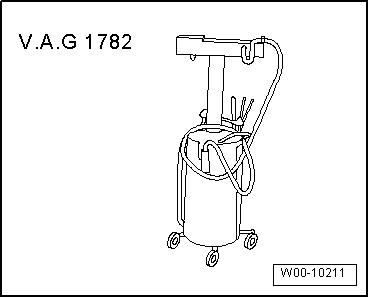

t	Used oil collection and extraction unit -V.A.G 1782-

Procedure

Drain the torque converter as follows if the ATF is very dirty due to component wear, or when performing a major gearbox overhaul:

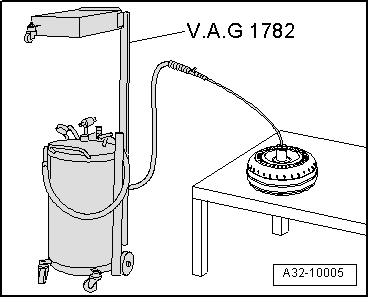

–	Extract ATF from torque converter with used oil collection and extraction unit -V.A.G 1782-.
