Audi A4 Mk3 Transmission: Exploded View of Selector Lever and Position Display

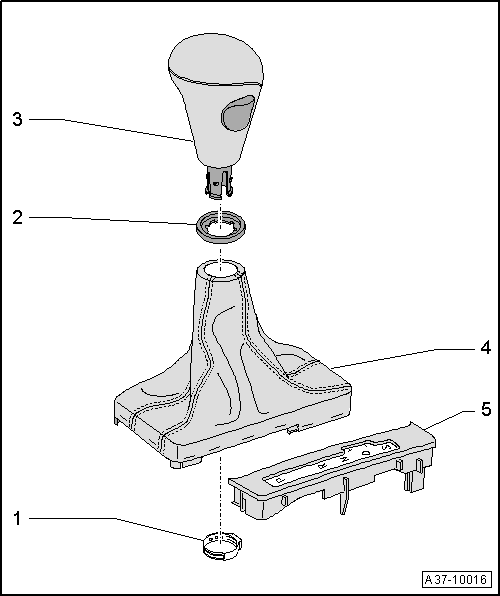

Exploded view - selector lever handle, selector lever position displayY26
Exploded view - selector lever handle, selector lever position display -Y26-
Overview:
t  → Chapter „Removing and installing selector lever handle“
t  → Chapter „Detaching selector lever boot from selector lever handle“
t  → Chapter „Removing and installing selector lever position display -Y26-“

1 - Clamp
q   To secure selector lever handle to selector lever
q   Removing and installing → Chapter
q   Must be renewed
2 - Trim ring
q   Removing and installing → Chapter
3 - Selector lever handle
q   → Chapter „Removing and installing selector lever handle“
4 - Selector lever boot
q   → Chapter „Detaching selector lever boot from selector lever handle“
5 - Selector lever position display -Y26-
q   → Chapter „Removing and installing selector lever position display -Y26-“
