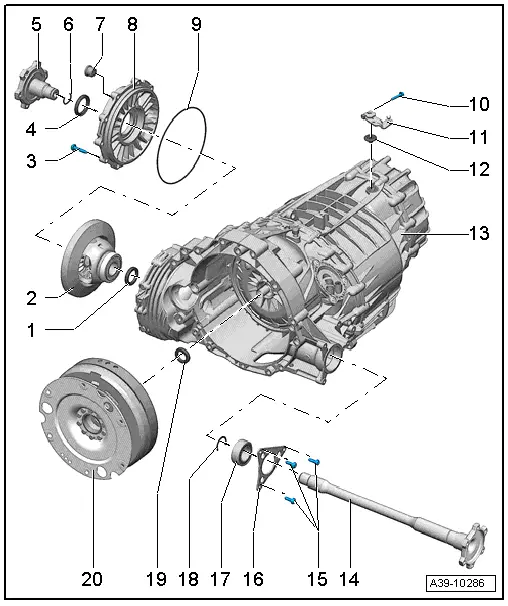

A4 Mk3
Note
|
| 1 - | Oil seal |
| q | For flange shaft (left-side) |
| q | → Chapter „Renewing oil seal for flange shaft (left-side)“ |
| 2 - | Differential |
| 3 - | Bolt |
| q | Tightening torque and sequence → Servicing multitronic 0AW; Rep. gr.39 |
| 4 - | Oil seal |
| q | For flange shaft (right-side) |
| q | → Chapter „Renewing oil seal for flange shaft (right-side)“ |
| 5 - | Flange shaft (right-side) |
| q | → Chapter „Removing and installing flange shaft (right-side)“ |
| 6 - | Circlip |
| q | Renewing → Chapter |
| 7 - | Filler and inspection plug |
| q | Tightening torque → Item |
| 8 - | Cover for front final drive |
| q | Pay attention to dowel sleeves |
| q | Can only be removed and installed with gearbox removed from vehicle → Servicing multitronic 0AW; Rep. gr.39 |
| q | Pre-fill after removing cover for front final drive → Chapter |
| 9 - | O-ring |
| q | On cover for front final drive |
| q | Renew |
| 10 - | Bolt |
| q | Tightening torque → Servicing multitronic 0AW; Rep. gr.39 |
| 11 - | Gearbox selector lever |
| 12 - | Oil seal |
| q | For selector shaft |
| q | Renewing → Chapter „Renewing oil seal for selector shaft“ |
| 13 - | Gearbox |
| 14 - | Flange shaft (left-side) |
| q | → Chapter „Removing and installing flange shaft (left-side)“ |
| 15 - | Bolt |
| q | Tightening torque → Servicing multitronic 0AW; Rep. gr.39 |
| 16 - | Mounting bracket |
| q | Can only be removed and installed with gearbox removed from vehicle → Servicing multitronic 0AW; Rep. gr.39 |
| 17 - | Ball bearing |
| q | For flange shaft (left-side) |
| q | Can only be removed and installed with gearbox removed from vehicle → Servicing multitronic 0AW; Rep. gr.39 |
| 18 - | Retaining clip |
| q | Renew |
| q | Can only be removed and installed with gearbox removed from vehicle → Servicing multitronic 0AW; Rep. gr.39 |
| 19 - | Oil seal |
| q | For input shaft |
| q | → Chapter „Renewing oil seal for input shaft“ |
| 20 - | Dual-mass flywheel |
| q | Can only be removed and installed with gearbox removed from vehicle → Servicing multitronic 0AW; Rep. gr.37 |
