Renewing oil seal for flange for propshaft (rear final drive removed)
Renewing protective ring on propshaft flange
Renewing protective ring on propshaft flange
Renewing protective ring on propshaft flange
Special tools and workshop equipment required
t
Thrust plate -VW 402-
t

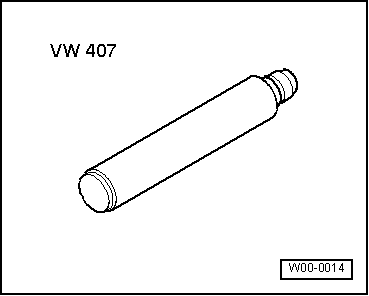

Press tool -VW 407-
t

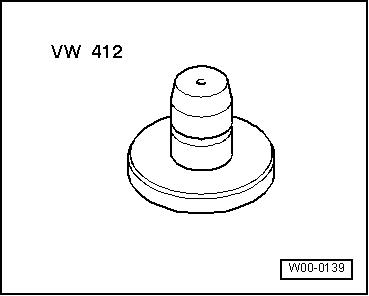

Press tool -VW 412-
t
Drift sleeve -40 - 20-
t
-3-

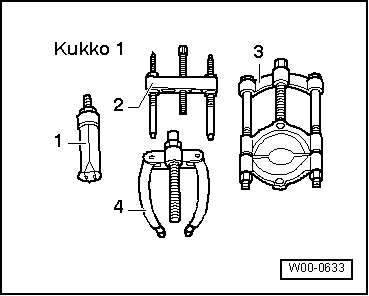

Splitter 22...75 mm, e.g. -Kukko 17/1-
Pressing protective ring off flange for propshaft
A -
Splitter 22...115 mm, e.g. -Kukko 17/2-
Pressing protective ring
-A-
onto propshaft flange
l
Installation position of protective ring
-A-
: recess in protective ring faces upwards towards drift sleeve -40 - 20-.
