Renewing oil seal for flange shaft (left-side)
Renewing oil seal for flange shaft (left-side)
–  Observe the general repair instructions → Chapter.
–  Remove rear final drive → Chapter.

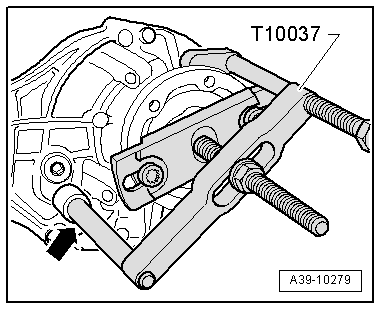

–  Secure puller -T10037- to housing -arrow- and pull out flange shaft.
  A39-10279

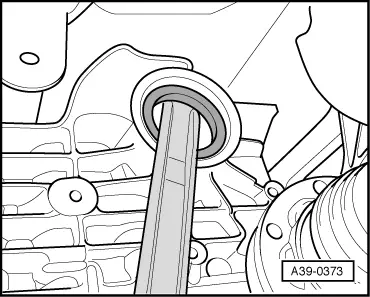

–  Pry out oil seal with a suitable assembly lever.
  A39-0373
–  Lightly lubricate outer circumference of oil seal with gear oil.
–  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.

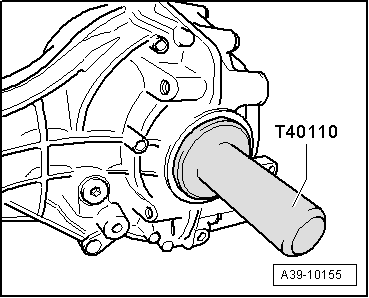

–  Drive in new oil seal onto stop (take care to keep oil seal straight).
Before installing flange shaft, check protective ring for damage. Renew protective ring if necessary → Chapter.
  A39-10155

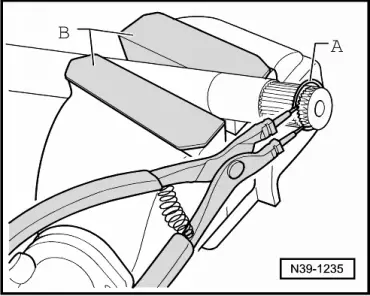

–  Remove old circlip -A- from groove in flange shaft using pliers.
B - Protective jaw covers
–  Insert new circlip in groove in flange shaft, taking care not to overstretch circlip.
  N39-1235

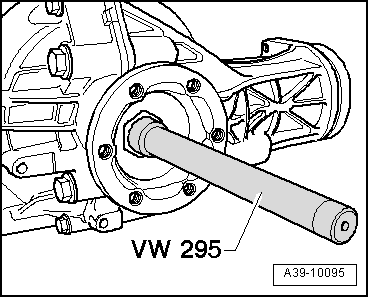

–  Drive in flange shaft with drift -VW 295-.
–  Install rear final drive → Chapter.
–  Check oil level in rear final drive → Chapter.
  A39-10095
