Identification of rear final drive units 0BF and 0BE
Identification of rear final drive units 0BF and 0BE
The »rear final drive 0BF« is installed in the Audi A4 2008 ►, Audi A5 Coupé 2008 ►, Audi A5 Cabriolet 2009 ►, Audi A5 Sportback 2010 ►, Audi A6 2011 ►, Audi A7 2011 ► and Audi A8 2010 ►.
It is employed in conjunction with the following gearbox types:
t  6-speed manual gearbox 0B2, four-wheel drive
t  6-speed manual gearbox 0B4, four-wheel drive
t  7-speed dual clutch gearbox 0B5, four-wheel drive
t  Automatic gearbox 0B6, four-wheel drive
t  8-speed automatic gearbox 0BK, four-wheel drive
The »rear final drive 0BE« is an uprated version of the »0BF« unit and is installed exclusively with the V8 TDI engine in the Audi A8 2010 ►.
It is employed in conjunction with the following gearbox:
t  8-speed automatic gearbox 0BL, four-wheel drive
Rear final drive allocation
t  → Chapter „Audi A4 2008 ► - Code letters, allocation, transmission ratios, capacities“
t  → Chapter „Audi A5 Coupé 2008 ► - Code letters, allocation, transmission ratios, capacities“
t  → Chapter „Audi A5 Sportback 2010 ► - Code letters, allocation, transmission ratios, capacities“
t  → Chapter „Audi A5 Cabriolet 2009 ► - Code letters, allocation, transmission ratios, capacities“
t  → Chapter „Audi A6 2011 ► - Code letters, allocations, transmission ratios, capacities“
t  → Chapter „Audi A7 2011 ► - Code letters, allocation, transmission ratios, capacities“
t  → Chapter „Audi A8 2010 ► - Code letters, allocation, transmission ratios, capacities“

Location on rear final drive
Classification of clutches -arrow 1-
Code letters and date of manufacture -arrow 2-
  Note
The rear final drive units 0BF and 0BE can be identified by the hydraulic control unit with superposition gears at the sides.
  A39-10355

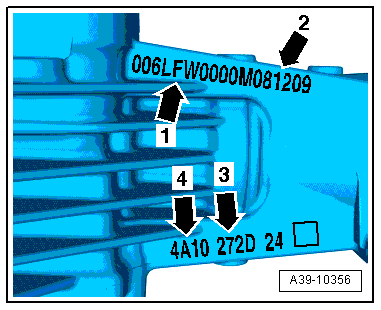

t  -Arrow 1- Code letters -LFW-
t  -Arrow 2- Manufacturing data of rear final drive
  A39-10356
Example:081209
 III
 Year -2008-
of manufacture		MonthDay

t  -Arrow 3- Classification of clutch on right side (classification of friction coefficients for clutch). Example: -272D-
t  -Arrow 4- Classification of clutch on left side (classification of friction coefficients for clutch). Example: -4A10-
Other information can be disregarded.
  Note
When installing a new rear final drive unit, it is important to verify not only the code letters of the final drive but also the PR No. and the engine code of the vehicle in the → Electronic parts catalogue. This is necessary to ensure that the correct version is installed.
