A4 Mk3

Renewing input shaft oil seal
Renewing input shaft oil seal
Special tools and workshop equipment required

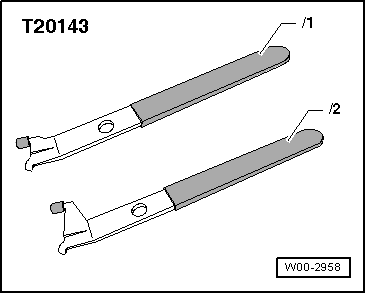

t  Extractor tool -T20143/1-
  W00-2958

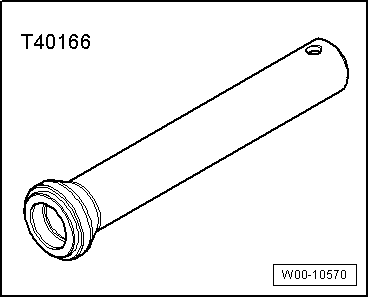

t  Thrust piece -T40166-
t  Sealing grease -G 052 128 A1-
l  Gearbox removed → 6-speed manual gearbox 0B1, front-wheel drive; Rep. gr.34
–  Remove clutch module → Chapter.
–  Remove clutch release lever, release bearing and guide sleeve → Chapter.
  W00-10570

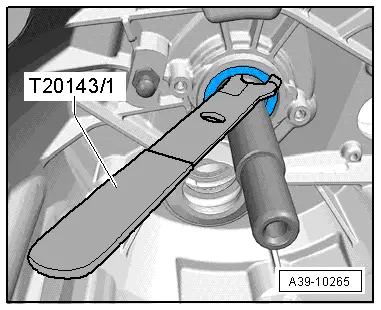

–  Prise out input shaft oil seal.
  A39-10265
–  Lightly oil outer circumference of new oil seal for input shaft.
–  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.

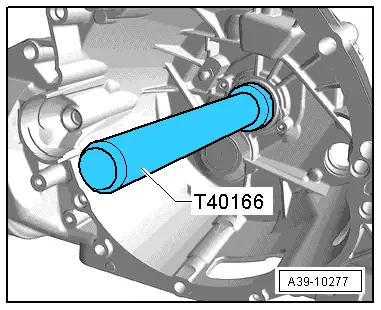

–  Drive in new oil seal onto stop (take care to keep seal straight).
–  Install clutch release lever, release bearing and guide sleeve → Chapter.
–  Install clutch module → Anchor.
  A39-10277
