Securing gearbox to engine and gearbox support
Securing gearbox to engine and gearbox support
Special tools and workshop equipment required

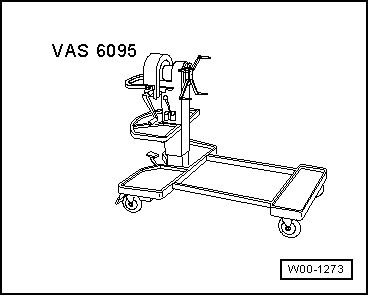

t  Engine and gearbox support -VAS 6095-
  W00-1273

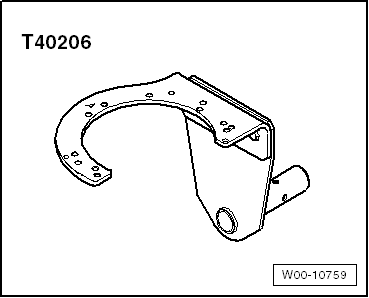

t  Gearbox support -T40206- with -T40206/1-
  W00-10759
Procedure

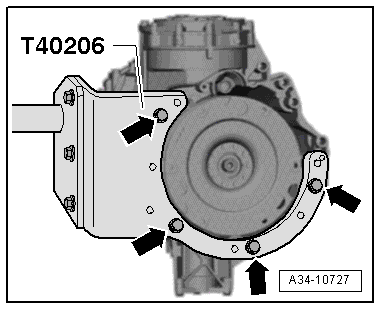

–  Secure gearbox support -T40206- with -T40206/1- to gearbox -arrows-.
  A34-10727
–  Lift gearbox with workshop hoist -VAS 6100- → Chapter.

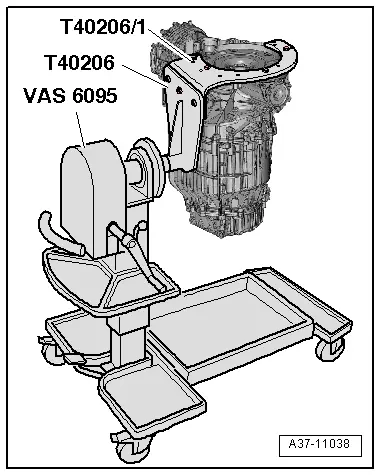

–  Attach gearbox with gearbox support -T40206- to engine and gearbox support -VAS 6095-.
  A37-11038
