Renewing input shaft oil seal
Renewing input shaft oil seal
Special tools and workshop equipment required

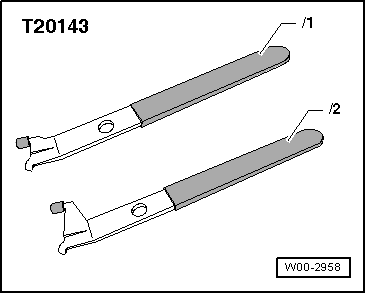

t  Extractor tool -T20143/1-
  W00-2958

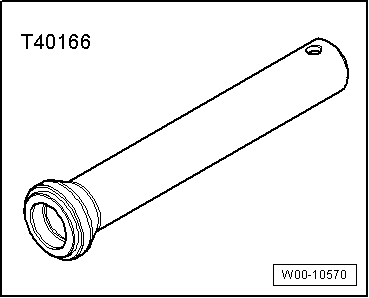

t  Thrust piece -T40166-
t  Sealing grease -G 052 128 A1-
l  Gearbox removed → 6-speed manual gearbox 0B2, four-wheel drive; Rep. Gr.34
  W00-10570
–  Remove clutch module → Chapter.

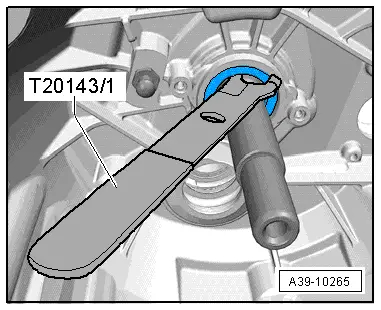

–  Prise out input shaft oil seal.
  A39-10265
–  Lightly oil outer circumference of new oil seal for input shaft.
–  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.

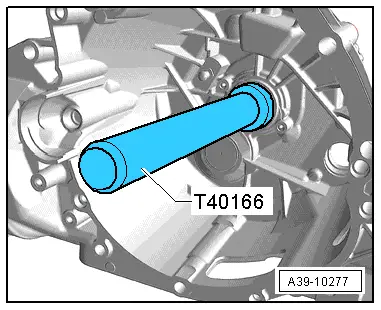

–  Drive in new oil seal onto stop (take care to keep seal straight).
–  Install clutch module → Anchor.
  A39-10277
