A4 Mk3

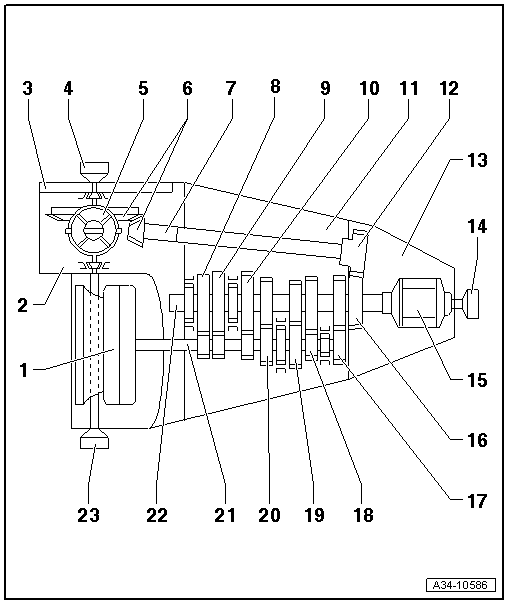

General layout of gearbox |
1 - | Clutch module |
q | Consists of pressure plate, clutch plate and dual-mass flywheel with flange for drive plate |
2 - | Gearbox housing |
3 - | Cover for final drive |
4 - | Flange shaft (right-side) |
5 - | Differential |
q | With crown wheel |
6 - | Final drive gear set |
q | Pinion shaft with crown wheel/ differential |
7 - | Pinion shaft |
8 - | Reverse gear |
9 - | 1st gear |
10 - | 2nd gear |
11 - | Gearbox cover |
12 - | Side shaft |
q | With spur gear |
13 - | Centre differential housing |
14 - | Flange shaft (rear) |
15 - | Centre differential |
16 - | Spur gear |
q | Drive gear for side shaft (spur gearing) |
17 - | 4th gear |
18 - | 3rd gear |
19 - | 6th gear |
20 - | 5th gear |
21 - | Input shaft |
22 - | Output shaft |
23 - | Flange shaft (left-side) |
