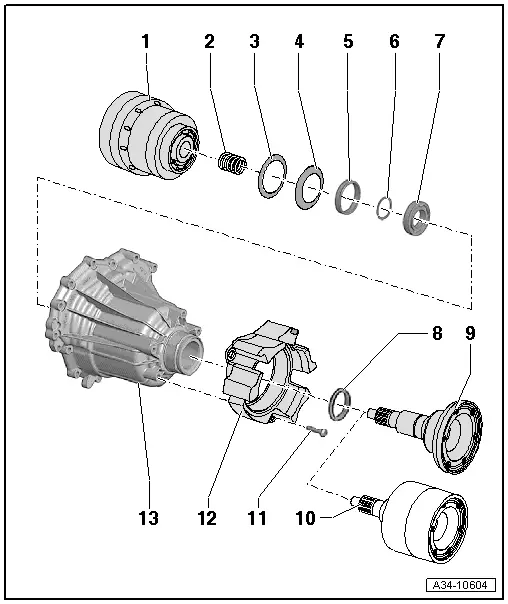

Exploded view - centre differential housing

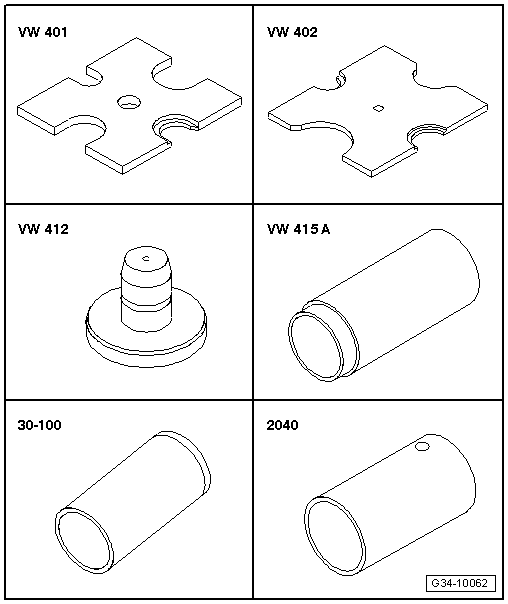

Special tools and workshop equipment required

t	Thrust plate -VW 401-

t	Thrust plate -VW 402-

t	Press tool -VW 412-

t	Tube -VW 415 A-

t	Drift sleeve -30 - 100-

t	Tube -2040-

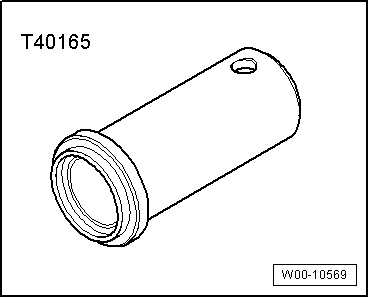

t  Thrust piece -T40165- t  Locking fluid -AMV 185 101 A1- t  Sealing grease -G 052 128 A1-

1 -	Centre differential

q	Can only be serviced by manufacturer

2 -

Spring

3 -

Shim

4 -	Dished spring

q	Installation position: Inner diameter (convex side) faces rear flange shaft

5 -	Spacer sleeve

q	Pressing out → Fig.

q	Pressing in → Fig.

6 -

Circlip

q	For flange shaft

q	Removing and installing → Fig.

7 -	Ball bearing

q	For flange shaft

q	Pressing out → Fig.

q	Pressing in → Fig.

8 -

Oil seal

q	Levering out → Fig.

q	Pressing in → Fig.

9 -	Flange shaft (rear)

q	Without vibration damper

q	Select correct components from → Electronic parts catalogue

q	Pressing out → Fig.

q	Pressing in → Fig.

10 -	Flange shaft (rear)

q	With vibration damper

q	Select correct components from → Electronic parts catalogue

q	Pressing out → Fig.

q	Pressing in → Fig.

11 -

Bolt

q	15 Nm and then turn 90° further

q	For vibration damper

q

3x

q	Apply locking fluid -AMV 185 101 A1- when fitting

12 -	Vibration damper

q	Not fitted on all versions

q	Select correct version according to gearbox code letters → Electronic parts catalogue

13 -	Centre differential housing

q	Can also be removed and installed with gearbox installed in vehicle → 6-speed manual gearbox 0B2, four-wheel drive; Rep. Gr.34

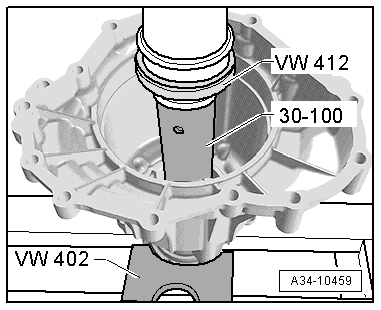

Pressing out ball bearing for flange shaft and spacer sleeve

Pressing in ball bearing for flange shaft and spacer sleeve l  Collar of tube -VW 415 A--arrow- faces press tool -VW 412-.

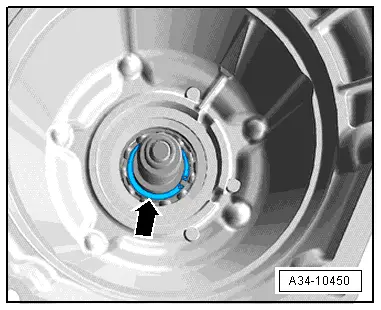

Removing circlip -arrow-

Levering out oil seal -1-   Note -Item 2- can be disregarded.

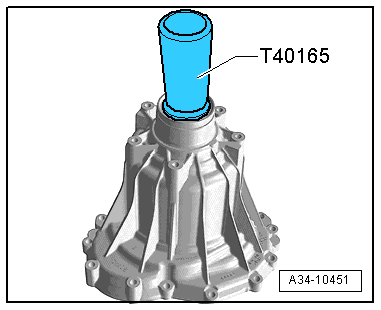

Installing oil seal for flange shaft (rear) –  Lightly lubricate outer circumference of oil seal and drive in onto stop. –  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-.

Pressing out flange shaft –  Before pressing out flange shaft remove circlip from flange shaft → Fig.. –  Position centre differential housing in such a way that the flange shaft does not make contact with thrust plates -VW 401- and -VW 402- when it is pressed out.

Pressing in flange shaft –  Before pressing in the flange shaft, secure the vibration damper (if fitted). Tightening torque → Item
