Exploded view - removing and installing selector fork cluster, input shaft, 1st, 2nd and reverse gears on output shaft > < Output shaft

A4 Mk3

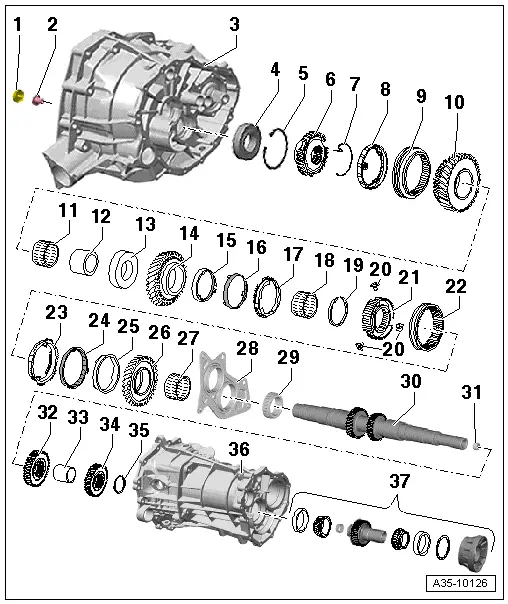

Exploded view - output shaft

Exploded view - output shaft
Exploded view - removing and installing selector fork cluster, input shaft, 1st, 2nd and reverse gears on output shaft → Chapter
Dismantling and assembling output shaft → Chapter
  Note
t  Refer to technical data when installing new gears or a new output shaft → 6-speed manual gearbox 0B2, four-wheel drive; Rep. Gr.00.
t  Lubricate all needle bearings and synchro-rings with gear oil before installing.
t  When renewing synchro-rings, renew inner ring, intermediate ring and synchro-ring for the corresponding gear together.
t  If synchro-rings are not being renewed, make sure they are re-installed on the same gear.
1 - Sealing cap
q   With oil guide
q   For output shaft
q   Removing and installing → Chapter
2 - Bolt
q   200 Nm
q   For output shaft
q   Apply locking fluid -AMV 185 101 A1- when fitting
3 - Gearbox housing
4 - Ball bearing
q   For output shaft
q   Removing and installing → Item
5 - Circlip
q   Note installation position → Chapter
6 - Reverse gear synchronising hub
q   Removing and installing → Chapter
7 - Spring
q   Insert in drilling in reverse gear synchronising hub
8 - Synchro-ring for reverse gear
q   Checking for wear → Fig.
9 - Reverse gear locking collar
q   Installation position → Fig.
10 - Reverse selector gear
q   Installation position → Fig.
11 - Needle bearing
q   For reverse gear
12 - Needle bearing inner race
q   For reverse gear
q   Removing and installing → Chapter
13 - Thrust washer
q   For 1st speed and reverse selector gears
14 - 1st speed selector gear
15 - Inner ring for 1st gear
q   Installation position → Fig.
q   Distinguishing inner rings for 1st and 2nd gear → Fig.
q   Checking for wear → Fig.
q   Renew if scored or if there are visible traces of wear
16 - Intermediate ring for 1st gear
q   Installation position → Fig.
q   Checking for wear → Fig.
17 - Synchro-ring for 1st gear
q   Installation position → Fig.
q   Checking for wear → Fig.
q   Renew if scored or if there are visible traces of wear
18 - Needle bearing
q   For 1st gear
19 - Circlip
q   Determining thickness → Anchor
20 - Locking piece
q   3x
q   Installing → Fig.
21 - Synchronising hub for 1st and 2nd gear
q   Installation position → Fig.
22 - Locking collar for 1st and 2nd gear
q   Installation position → Fig.
23 - Synchro-ring for 2nd gear
q   Installation position → Fig.
q   Checking for wear → Fig.
q   Renew if scored or if there are visible traces of wear
24 - Intermediate ring for 2nd gear
q   Installation position → Fig.
q   Checking for wear → Fig.
25 - Inner ring for 2nd gear
q   Installation position → Fig.
q   Distinguishing inner rings for 1st and 2nd gear → Fig.
q   Renew if scored or if there are visible traces of wear
26 - 2nd speed selector gear
27 - Needle bearing
q   For 2nd gear
28 - Bearing mounting
q   Carries bearings for input shaft and output shaft in gearbox cover
q   → Item
29 - Roller bearing
q   For output shaft
q   Pressing off → Fig.
q   Pressing on → Fig.
30 - Output shaft
q   With splines for 5th and 6th gear
31 - Needle bearing
q   Bearing for rear flange shaft in output shaft
q   Pulling out → Fig.
q   Driving in → Fig.
32 - 3rd gear wheel
q   Pressing off → Fig.
q   Installation position: high inside collar faces 4th gear
q   Pressing on → Fig.
33 - Spacer sleeve
34 - 4th gear wheel
q   Pressing off → Fig.
q   Installation position: high inside collar faces spur gear → Item
q   Pressing on → Fig.
35 - Circlip
q   Determining thickness → Anchor
36 - Gearbox cover
37 - Spur gear
q   With tapered roller bearing and bearing plate
q   Servicing bearings for spur gear → Chapter

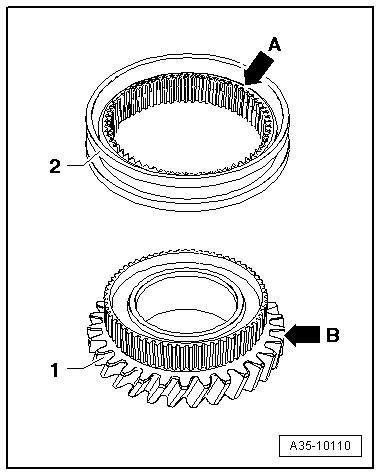

Installation position of locking collar -2- and selector gear -1- for reverse gear
l  The pointed teeth -arrow A- of the locking collar -2- point away from the driving teeth -arrow B- of the reverse selector gear -1-.
  A35-10110

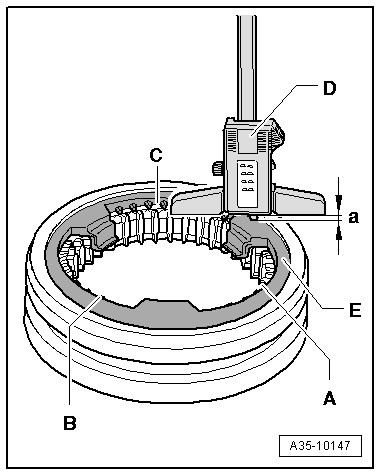

Checking synchro-ring for wear
–  Press synchro-ring -E- into locking collar and measure gap -a- at positions -A-, -B- and -C- using depth gauge -D-.
–  Add the measured values and divide by 3.
The determined value should not exceed 0.5 mm.
  A35-10147

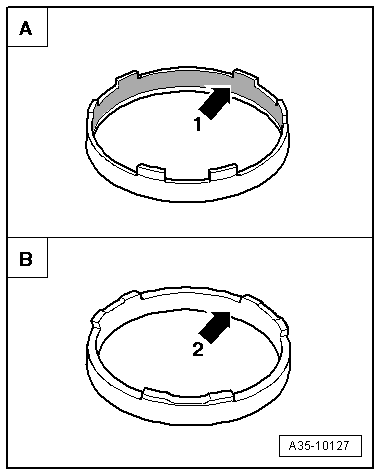

Distinguishing inner rings for 1st gear -A- and 2nd gear -B-
-A- The inner ring for 1st gear has a coated friction surface on the inside -arrow 1- and is conical.
-A- The inner ring for 2nd gear has no friction surface on the inside -arrow 2- and is cylindrical.
  A35-10127

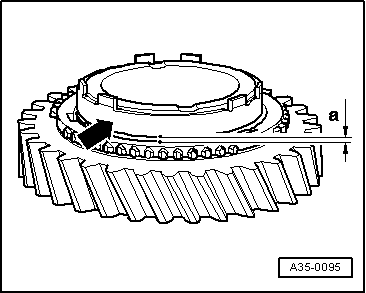

Checking 1st gear inner ring for wear
–  Check outer contact surface -arrow- for scoring or visible traces of wear and renew if necessary.
–  Press inner ring onto chamfer on selector gear and measure gap -a- using a feeler gauge.
  A35-0095
Gap -a-Wear limit
Inner ring for 1st gear0.6 mm

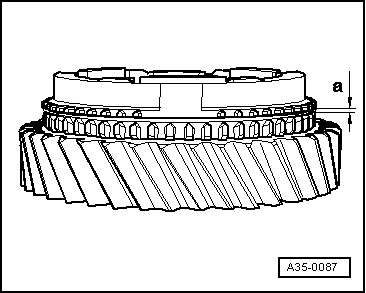

Checking 1st and 2nd gear intermediate ring for wear
–  Check inner friction surface of synchro-ring for grooves or scoring and renew if necessary.
–  Fit inner ring, intermediate ring and synchro-ring on selector gear and rotate rings until they are “seated”.
  Note
To achieve proper seating, rotate synchro-rings approx. one turn while pressing down rings simultaneously.
–  Then measure gap -a- using a feeler gauge.
  A35-0087
Gap -a-Wear limit
1st and 2nd gear0.7 mm

  Note
Renew inner ring, intermediate ring and synchro-ring for the corresponding gear together.

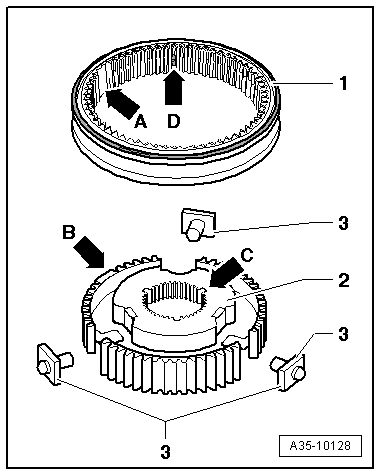

Assembling 1st and 2nd gear locking collar/synchronising hub
–  Fit locking collar -1- onto synchronising hub -2- so that wide teeth of locking collar -arrow A- and synchronising hub -arrow B- coincide.
l  Installation position of synchronising hub: high inside collar -arrow C- faces 2nd speed selector gear.
–  Then fit locking pieces -3- in synchronising hub and press them into recesses -arrows D- in locking collar.
  A35-10128
