Exploded view - servicing end cover Special tools and workshop equipment required

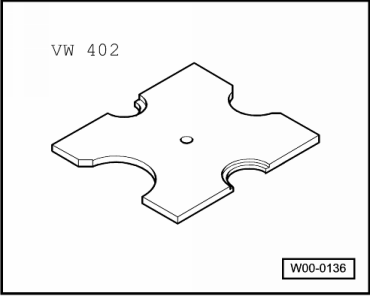

t  Thrust plate -VW 401-

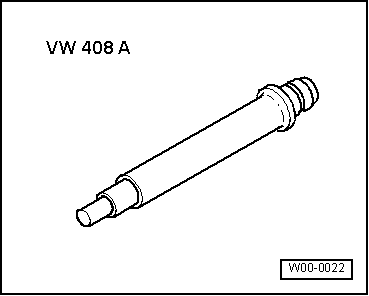

t  Press tool -VW 408 A-

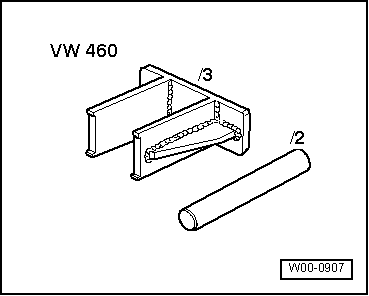

t  Removing tool -VW 460-

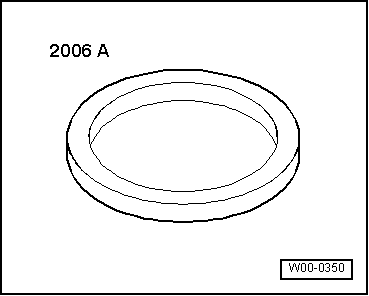

t  Support ring -2006 A-

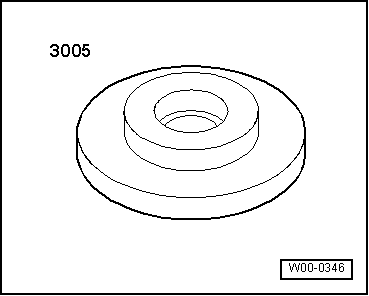

t  Thrust plate -3005-

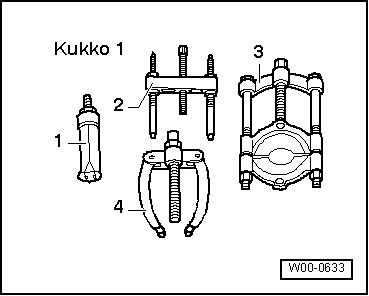

t  -1-Internal puller -Kukko 21/8- t  -4-Counter-support -Kukko 22/2-

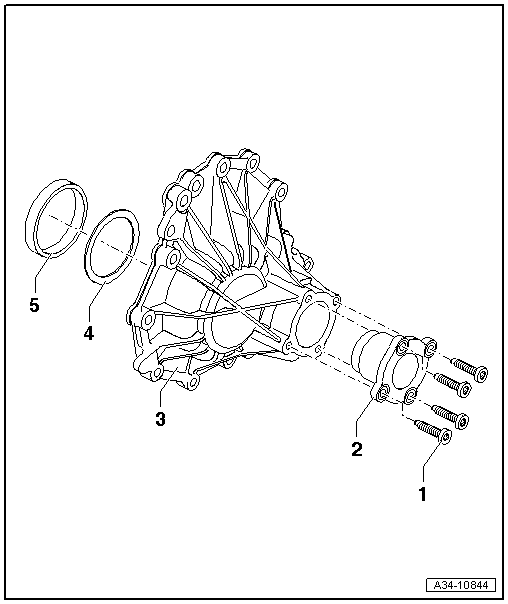

1 -

Bolt

q

24 Nm

q	Steel bolts (M8; 25 mm long)

q

4x

q	Apply locking fluid -AMV 185 101 A1- when fitting

2 -	Sealing cap

q	With inner race for roller bearing for output gear/spur gear mechanism

q	Prior to attachment, coat the sealing cap sealing surface at the gearbox cover with sealing paste -AMV 188 001 02-

3 -

End cover

4 -

Shim

q	For pre-load of tapered roller bearings for input gear/spur gear mechanism → Item

q	Determining thickness → Chapter

5 -	Outer race/tapered roller bearing

q	For mounting input gear/spur gear mechanism in end cover

q	Extracting → Fig.

q	Pressing in → Fig.

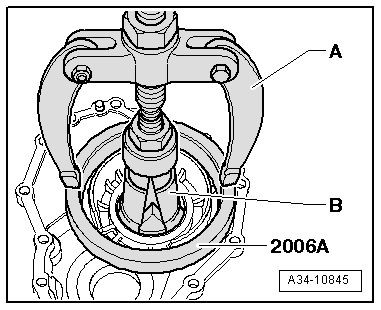

Extracting outer race/tapered roller bearing from end cover A -  Counter-support, e.g. -Kukko 22/2- B -  Internal puller 56 ... 70 mm, e.g. -Kukko 21/8-   Note Check the shim → Item for damage and replace if necessary.

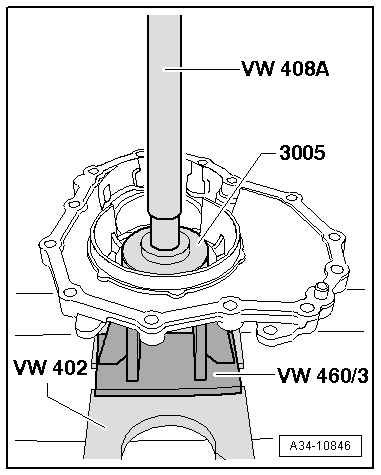

Pressing home outer race/tapered roller bearing –  Position shim beneath outer race beforehand. –  Support the end cover with -VW 460/3- directly beneath the bearing support.
