A4 Mk3

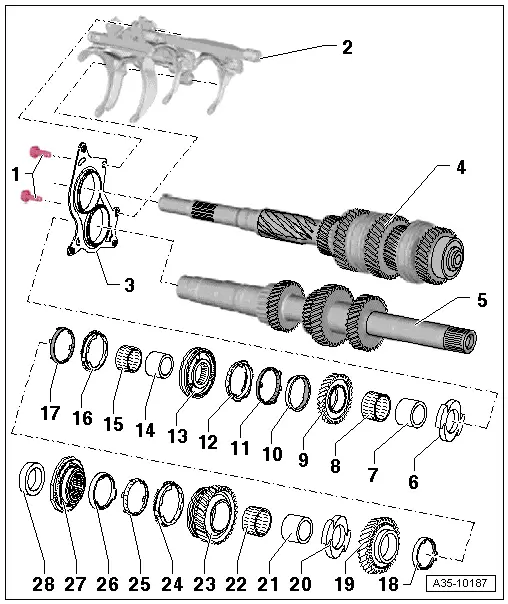

| Exploded view - removing and installing selector fork cluster, input shaft, 1st, 2nd and reverse gears on output shaft |
| 1 - | Bolt |
| q | 24 Nm |
| q | Steel bolts (M8; 45 mm long) |
| q | 2x |
| q | Secures selector fork cluster → Item to bearing mounting → Item |
| q | Apply locking fluid -AMV 185 101 A1- when fitting |
| 2 - | Selector fork cluster |
| q | Dismantling and assembling → Chapter |
| 3 - | Bearing mounting |
| q | Carries bearings for input shaft and output shaft in gearbox cover |
| q | Clean locking fluid out of tapped holes (using thread tap or similar) |
Note| t | The roller bearing outer races on the input shaft and output shaft cannot be renewed separately. |
| t | The roller bearing outer races must not have any radial clearance in the bearing mounting. |
| 4 - | Input shaft |
| q | Dismantling and assembling → Chapter |
| 5 - | Output shaft |
| q | With 3rd and 4th gear wheels |
| q | Removing and installing 1st, 2nd and reverse gear → Chapter |
| q | Dismantling and assembling → Chapter |
| 6 - | Thrust washer |
| q | For 2nd speed selector gear |
| 7 - | Needle bearing inner race |
| q | For 2nd speed selector gear |
| q | Removing and installing → Item |
| 8 - | Needle bearing |
| q | For 2nd gear |
| 9 - | 2nd speed selector gear |
| 10 - | Inner ring for 2nd gear |
| q | → Item |
| 11 - | Intermediate ring for 2nd gear |
| q | → Item |
| 12 - | Synchro-ring for 2nd gear |
| q | → Item |
| 13 - | Locking collar/synchronising hub for 1st and 2nd gear |
| q | → Item |
| 14 - | Needle bearing inner race |
| q | For 1st speed selector gear |
| q | Removing and installing → Item |
| 15 - | Needle bearing |
| q | For 1st gear |
| 16 - | Synchro-ring for 1st gear |
| q | → Item |
| 17 - | Intermediate ring for 1st gear |
| q | → Item |
| 18 - | Inner ring for 1st gear |
| q | → Item |
| 19 - | 1st speed selector gear |
| 20 - | Thrust washer |
| q | For 1st speed and reverse selector gears |
| 21 - | Needle bearing inner race |
| q | For reverse gear |
| q | Removing and installing → Item |
| 22 - | Needle bearing |
| q | For reverse gear |
| 23 - | Reverse selector gear |
| q | With locking collar for reverse gear |
| q | → Item |
| 24 - | Synchro-ring for reverse gear |
| q | → Item |
| 25 - | Intermediate ring for reverse gear |
| q | → Item |
| 26 - | Inner ring for reverse gear |
| q | → Item |
| 27 - | Reverse gear synchronising hub |
| q | Can be detached from output shaft by hand |
| 28 - | Thrust washer |
