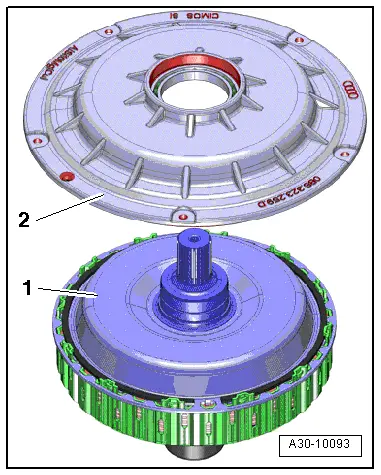

| If the clutch cover cannot be detached, knock lightly on the input shaft with a plastic hammer while a second mechanic lifts the clutch cover by hand. |
t
| Take care not to damage the thin collar -arrow A-. |
Installation is carried out in reverse sequence; note the following: |

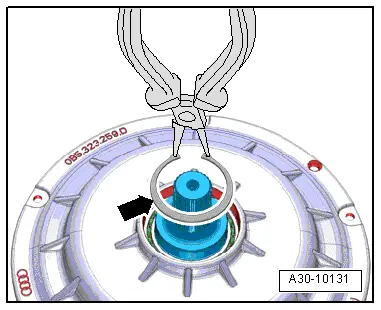

Note Renew O-ring and circlip. |
–
| Clean sealing surface on clutch cover. |
–
| Turn rectangular section seals -B- on hub and check for freedom of movement and axial play. |
Note If any of the rectangular section seals do not move freely, the dual clutch must not be fitted. |
|
|
|
