Draining ATF
Draining ATF
Special tools and workshop equipment required

t  Used oil collection and extraction unit -V.A.G 1782-
t  Safety goggles
  W00-10211
Draining ATF
Gearbox installed:
l  Engine not running.
l  Vehicle must be absolutely horizontal (drive it onto a four pillar lifting platform or over an inspection pit).
l  Selector lever at position „P“.
l  Parking brake button must be pulled up to apply the electromechanical parking brake.
–  Remove rear noise insulation -2- → General body repairs, exterior; Rep. gr.66.
  Caution
Risk of damage to gearbox
The engine must not be started if only a little or no ATF remains in gearbox after repair work or after excessive ATF leakage.
Gearbox removed:
l  Gearbox secured to engine and gearbox support → Chapter
Gearbox removed or installed:
  A10-11100
–  Place used oil collection and extraction unit -V.A.G 1782- below gearbox.
  WARNING
Risk of eye injury.
Wear safety goggles.
–  Remove ATF drain plug -arrow- and allow ATF to drain off.
  Note
t  Always adhere to waste disposal regulations.
t  Renew the seal for the ATF drain plug.
–  Tighten ATF drain plug.

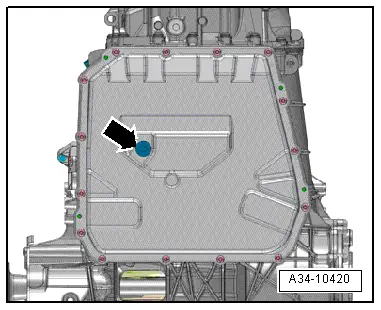

  A34-10420
On gearbox versions with exchangeable ATF filter -2-:
  Caution
Risk of damage to gearbox
The exchangeable ATF filter -2- must always be renewed when the ATF is changed.
–  Renew ATF filter (exchangeable filter) → Chapter.
Continued for all gearboxes:
Filling gearbox with ATF
  Caution
Risk of damage to gearbox
t  Use only the ATF supplied as a replacement part for dual clutch gearbox 0B5.
t  Select correct type → Electronic parts catalogue.
t  Other types of ATF or other oils cause malfunctions and/or failure of the gearbox.
t  The ATF filling unit must be clean and the ATF must not be mixed with other types of oil!
–  Fill up with ATF → 7-speed dual clutch gearbox 0B5 (S tronic); Rep. gr.34.
  A37-11144
