Removing and installing ATF oil pan
Removing and installing ATF oil pan

Removing
  Note
t  Observe the general repair instructions → Chapter.
t  Rules for cleanliness when working on the dual clutch gearbox → Chapter.
Gearbox installed
The ATF oil pan can also be removed and installed with the gearbox installed in the vehicle. Depending on the vehicle type and engine version, additional steps may be necessary in order to access the ATF oil pan → 7-speed dual clutch gearbox 0B5 (S tronic); Rep. gr.34.
Gearbox removed
–  Gearbox secured to engine and gearbox support → Chapter
–  Place used oil collection and extraction unit -V.A.G 1782- below gearbox.
–  Drain ATF → Chapter.
  A10-11071
–  Slacken bolts -1 … 15- in diagonal sequence.
–  Remove bolts and detach ATF oil pan.
  Note
-Arrows- can be disregarded.
  A34-10429
Installing
Installation is carried out in reverse sequence; note the following:
  Note
Renew bolts and gasket for ATF oil pan.
–  Clean sealing surfaces.

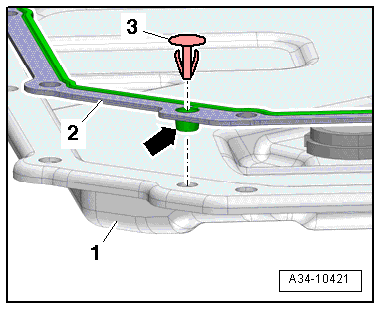

–  Insert studs -arrow- on new gasket -2- into ATF oil pan -1-.
–  Secure gasket to ATF oil pan with spreader rivets -3- (if fitted).
  A34-10421

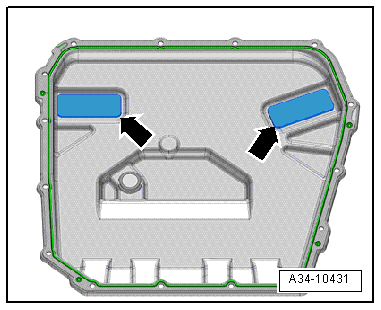

–  Clean magnets -arrows- in ATF oil pan.
–  Ensure that magnets make full contact with ATF oil pan.
  A34-10431
–  Tighten bolts for ATF oil pan → Fig..
–  After installing ATF oil pan, fill up with ATF → 7-speed dual clutch gearbox 0B5 (S tronic); Rep. gr.34.
  A34-10429
