Removing and installing engine mountings   Note The following chapter describes the procedure for the engine mounting (left-side).   Note t  Renew engine mountings on both sides together. t  Also renew corresponding brackets. Special tools and workshop equipment required

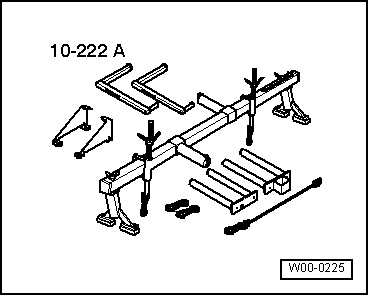

t  Support bracket -10 - 222 A-

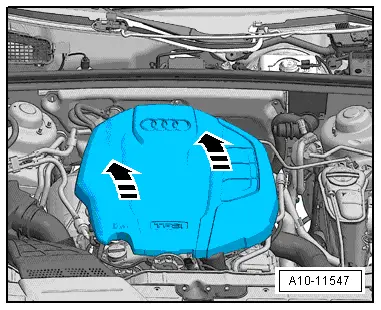

Removing –  Remove engine cover panel -arrows-. –  Remove body brace → Rep. gr.40.

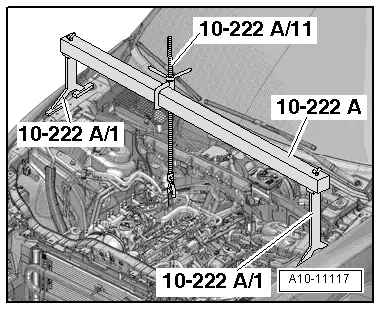

–  Set up support bracket -10 - 222 A- on suspension turrets (left and right) as illustrated. –  Attach spindle -10 - 222 A /11- to rear engine lifting eye. –  Partly take up weight of engine with spindle.

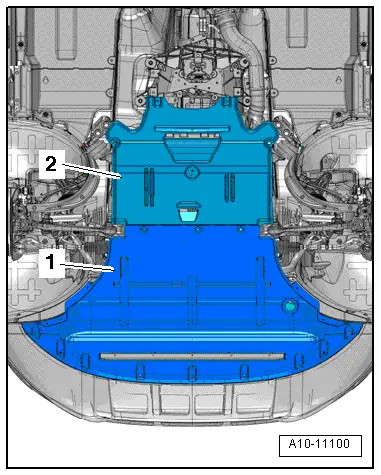

–  Remove front left wheel. –  Remove front noise insulation -1- → Rep. gr.66. –  Remove front left wheel housing liner → Rep. gr.66.

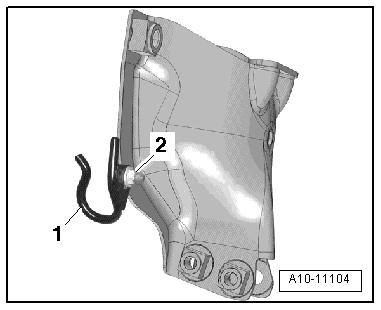

–  Remove nut -2- and move bracket -1- clear.

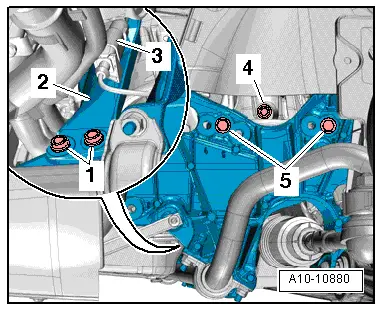

–  Move clear and unplug electrical connector -3- on left electrohydraulic engine mounting solenoid valve -N144-. –  Remove bolts -1, 4, 5- for engine mounting. –  Move retaining plate -2- for engine mounting clear to the side. –  Detach engine mounting. Installing l  Tightening torques → Chapter „Assembly mountings - exploded view“ Installation is carried out in the reverse order; note the following:   Note Renew the bolts tightened with specified tightening angle. –  Install wheel housing liner and noise insulation → Rep. gr.66. –  Fit front wheel → Rep. gr.44. –  Install body brace → Rep. gr.40.
