Removing and installing coolant pipe (front)

Special tools and workshop equipment required

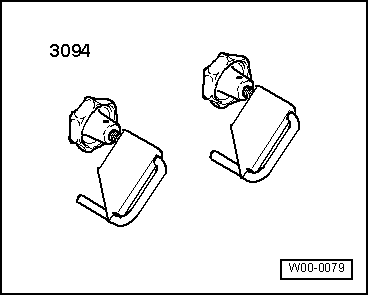

t	Hose clamps for hoses up to 25 mm -3094-

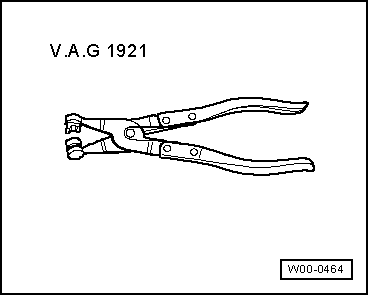

t	Hose clip pliers -V.A.G 1921-

Removing

Note

Place a cloth under coolant pipe to catch escaping coolant.

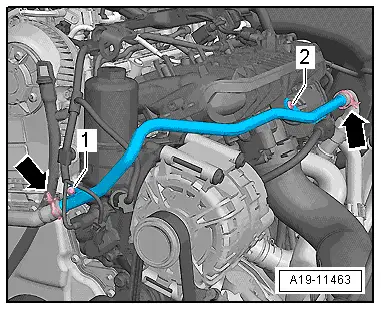

–	Unscrew bolts -1- and -2- and swivel coolant pipe (front) upwards.

–	Clamp off coolant hoses with hose clamps up to 25 mm -3094- and detach -arrows-.

Installing

l	Tightening torques

Installation is carried out in the reverse order; note the following:

Note

Secure all hose connections with the correct type of hose clips (same as original equipment) → Electronic parts catalogue.

–	Check coolant level → Anchor.
