A4 Mk3

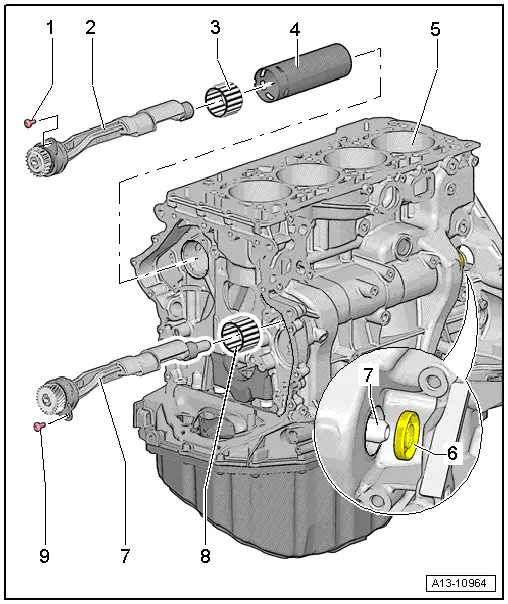

| Balance shafts - exploded view |
| 1 - | Bolt |
| q | Renew |
| q | 9 Nm |
| 2 - | Balance shaft |
| q | Exhaust side |
| q | Always renew after removal |
| q | Lubricate bearing with engine oil |
| q | Renewing → Chapter |
| 3 - | Needle bearing |
| q | Fit only needle bearings of the same colour |
| 4 - | Tube for balance shaft |
| q | Installation position → Fig. |
| 5 - | Cylinder block |
| 6 - | Oil seal for balance shaft (inlet side) |
| q | Renewing → Chapter |
| 7 - | Balance shaft |
| q | Inlet side |
| q | Always renew after removal |
| q | Lubricate bearing with engine oil |
| q | Renewing → Chapter |
| 8 - | Needle bearing |
| q | For inlet side |
| q | Fit only needle bearings of the same colour |
| 9 - | Bolt |
| q | Renew |
| q | 9 Nm |
|
|
