| Piston ring clamp, commercially available |
| l
| Engine secured to engine and gearbox support -VAS 6095- → Chapter |
| –
| Mark installation position and cylinder number of piston. |
| –
| Mark installation position and cylinder number of conrod → Item. |
| –
| Remove conrod bearing cap and pull out piston and conrod upwards. |
Note | If piston pin is difficult to remove, heat piston to approx. 60 °C. |
| –
| Take circlip out of piston pin boss. |
| –

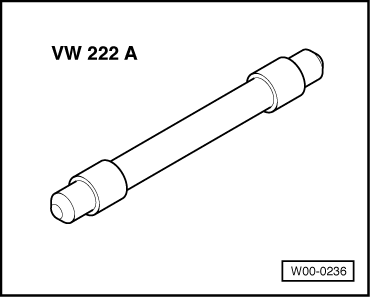

| Use drift -VW 222 A- to drive out piston pin. |
| Installation is carried out in the reverse order; note the following: |
Note | t
| Renew the bolts tightened with specified tightening angle. |
| t
| Arrow on piston crown points to pulley end. |
| t
| Piston ring gaps should be spaced at 120°. |
| –
| Oil running surfaces of bearing shells. |
| –
| Install piston using commercially available piston ring clamp; note installation position → Item. |
| –
| Install conrod bearing cap; note installation position → Item. |
|
|
|
