A4 Mk3
Power unit
4-cylinder direct petrol injection engine (1.8 ltr., 2.0 ltr. 4-valve turbo), mechanics
Engine cooling / Parts of cooling system (on engine)
Removing and installing thermostat
Removing and installing thermostat
Removing and installing thermostat
Removing
–
Drain coolant
→ Chapter
.
–
Remove coolant pump
→ Chapter
.
–

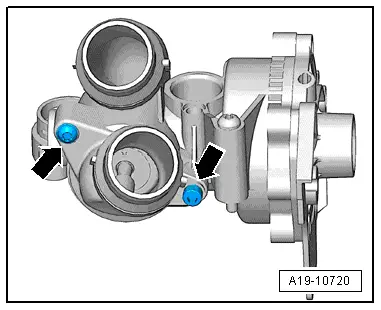

Unscrew bolts
-arrows-
and remove connection.
–
Detach thermostat.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torque
→ Chapter „Coolant pump and thermostat - exploded view“
Note
Renew gaskets and O-rings.
–
Clean sealing surface for O-ring.
–
Coat O-ring with coolant, coolant
→ Electronic parts catalogue
.
–

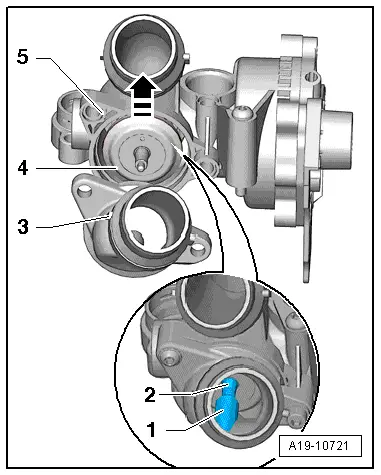

Insert thermostat
-4-
in coolant pump housing
-5-
and swivel forwards slightly
-arrow-
.
–
Fit connection
-3-
carefully (insert centring pin
-2-
in guide
-1-
).
–
Install support for intake manifold
→ Rep. gr.24
.
–
Install air pipes/hoses with plug-in connectors
→ Chapter
.
–
Fill up with coolant
→ Anchor
.
