Removing and installing radiator fanV7 and radiator fan 2V177 >
< Removing and installing radiator with radiator cowl
A4 Mk3
Power unit
4-cylinder TDI engine (2.0 ltr. 4-valve common rail), mechanics
Engine cooling
Parts of cooling system (on body)
Removing and installing radiator fan control unitJ293
Removing and installing radiator fan control unitJ293
Removing and installing radiator fan control unit -J293-
Removing
Note
Fit all cable ties in the original positions when installing.
–
Remove noise insulation
→ Rep. gr.66
.
–
Perform service position
→ Rep. gr.50
.
–

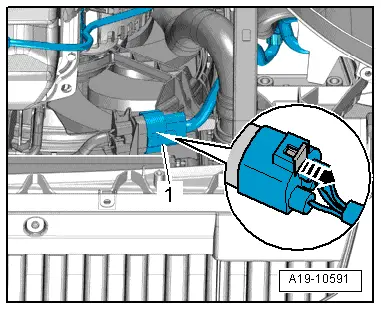

Take electrical connector
-1-
for radiator fan out of bracket and unplug connector (push retainer to the rear
-arrow-
and press down release catch).
–
Move clear electrical wiring harness going to radiator fan control unit.
–
Unplug electrical connectors
-2-
and
-3-
.
–
Unscrew bolt
-arrow-
and remove radiator fan control unit
-1-
.
Installing
l
Tightening torque
→ Chapter
Install in reverse order. Note the following:
–
Install front noise insulation
→ Rep. gr.66
.
Power unit
4-cylinder TDI engine (2.0 ltr. 4-valve common rail), mechanics
Engine cooling
Parts of cooling system (on body)
Removing and installing radiator fan control unitJ293
Removing and installing radiator fanV7 and radiator fan 2V177 >
< Removing and installing radiator with radiator cowl
