Sealing flange (pulley end) - exploded view > < Removing and installing tensioner for poly V-belt

A4 Mk3

Removing and installing vibration damper
Removing and installing vibration damper
Removing

–  Remove front noise insulation -1- → Rep. gr.66.
  A10-11071
–  Vehicles with cross member -3-: Move lock carrier into service position → Rep. gr.50.
–  Vehicles without cross member-3-: Remove radiator fan control unit -J293- → Chapter.
–  Remove poly V-belt → Chapter.
–  Detach cover cap for vibration damper.
  A10-10992

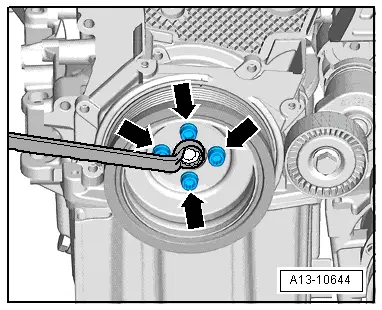

–  Remove bolts -arrows- (counterhold at central bolt).
–  Remove vibration damper.
Installing
Install in reverse order. Note the following:
Tightening torques → Chapter „Poly V-belt drive - exploded view“
Tightening torques → Chapter „Assembly mountings - exploded view“
  A13-10644
–  When installing vibration damper use only new genuine bolts (same as original equipment) → Electronic parts catalogue.

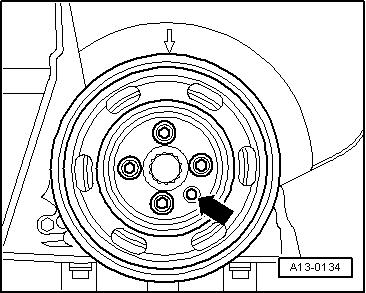

l  The vibration damper can only be installed in one position. The hole -arrow- in the vibration damper must be located over the projection on the toothed belt sprocket.
  A13-0134
