Removing and installing exhaust gas recirculation cooler
Removing and installing exhaust gas recirculation cooler
Removing and installing exhaust gas recirculation cooler
Special tools and workshop equipment required
t

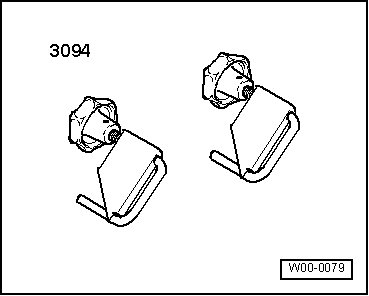

Hose clamps for hoses up to 25 mm -3094-
Removing
–

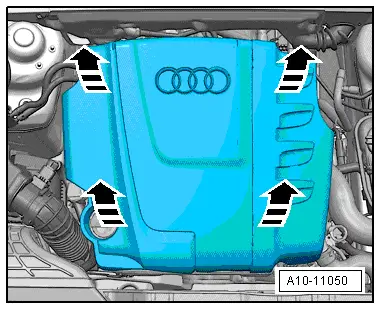

Remove engine cover panel
-arrows-
.
–
Remove air cleaner housing
→ Rep. gr.23
.
–

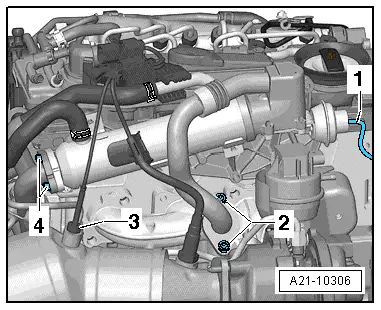

Disconnect vacuum hose
-1-
.
–
Remove bolts
-2-
and
-4-
.
–

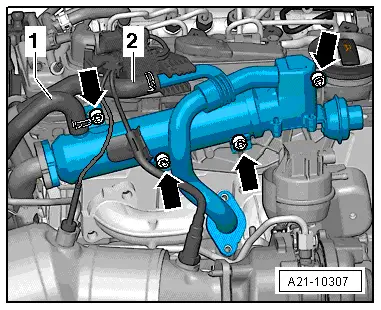

Clamp off coolant hoses
-1-
and
-2-
using hose clamps up to 25 mm -3094- and disconnect hoses.
–
Remove bolts
-arrows-
and detach exhaust gas recirculation cooler.
Installing
Install in reverse order. Note the following:
Tightening torques
→ Chapter „Exhaust gas recirculation system - exploded view“
Note
t
Renew gaskets and O-rings.
t
Secure all hose connections with the correct type of hose clips (same as original equipment)
→ Electronic parts catalogue
.
–
Top up coolant.
