A4 Mk3

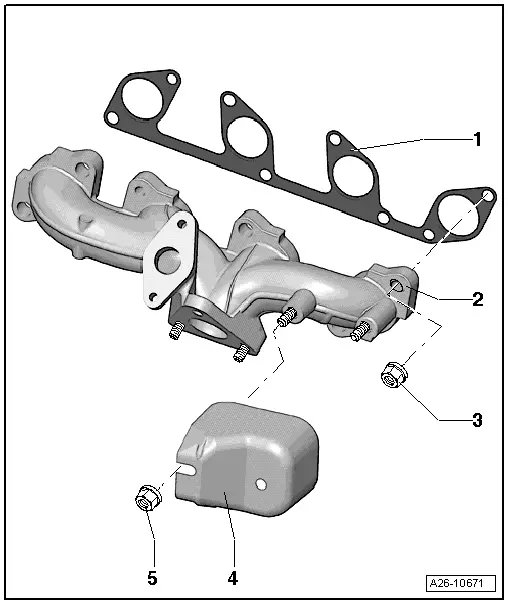

| Exhaust manifold - exploded view |
| 1 - | Gasket |
| q | Renew |
| 2 - | Exhaust manifold |
| q | Removing and installing → Chapter |
| 3 - | Nut |
| q | 25 Nm |
| q | Renew |
| q | Coat with high-temperature lubricant; for high-temperature lubricant refer to → Parts catalogue |
| 4 - | Heat shield |
| 5 - | Nut |
| q | 25 Nm |
