A4 Mk3

Renewing tailpipe
Renewing tailpipe
t  The tailpipes can be cut through at the point marked so that the tailpipes can be renewed separately.
t  The cutting point is marked by an indentation on the circumference of the exhaust pipe.

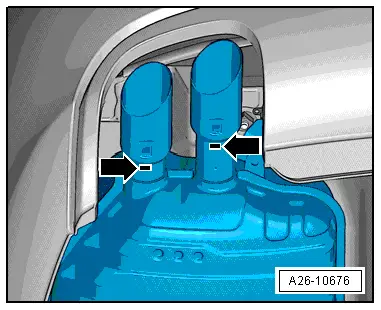

–  Cut through exhaust pipe at right angle at the position marked by -arrows- using chain pipe cutter -VAS 6254-.
–  Fit tailpipe.
  A26-10676

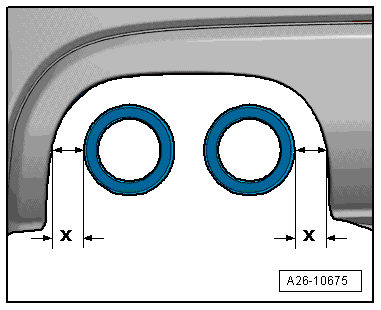

–  Check clearance between tailpipe and bumper:
l  Dimension -x- (left-side) = dimension -x- (right-side)
–  Tighten bolt connections on clamps.
  A26-10675
