A4 Mk3

Continued coolant circulation pumpV50 - exploded view

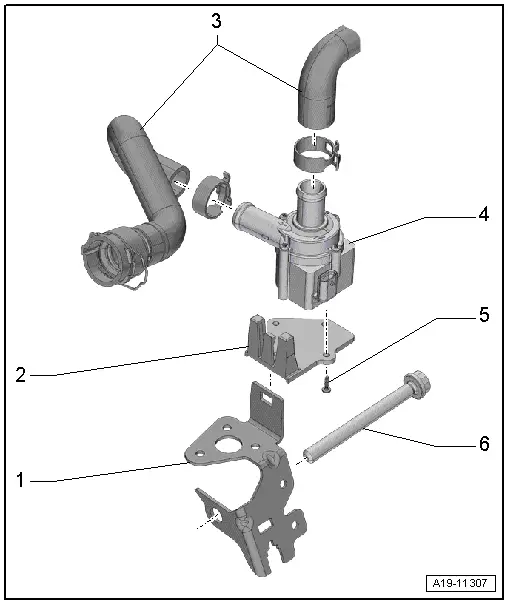

Continued coolant circulation pump -V50- - exploded view
1 - Bracket
2 - Mounting plate
3 - Coolant hoses
4 - Coolant circulation pump -V50-
q   Removing and installing → Chapter
5 - Bolt
q   2.7 Nm
6 - Bolt
q   Tightening torque → Chapter
