A4 Mk3

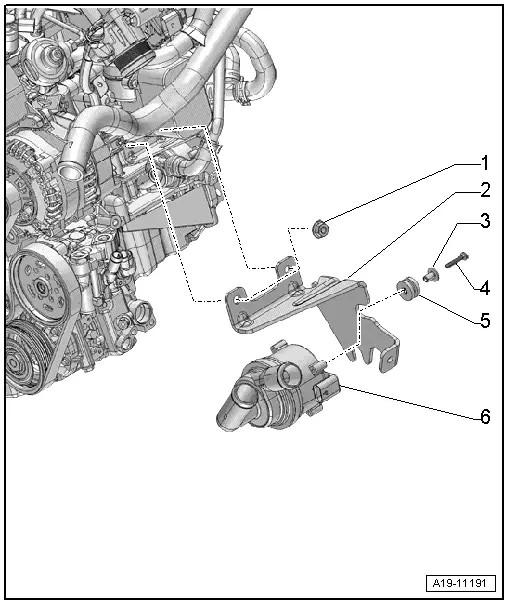

| Pump for exhaust gas recirculation cooler -V400- - exploded view |
| 1 - | Nut |
| q | 9 Nm |
| 2 - | Bracket |
| q | For pump for exhaust gas recirculation cooler -V400- |
| 3 - | Spacer bush |
| 4 - | Bolt |
| q | 2.7 Nm |
| 5 - | Grommet |
| 6 - | Pump for exhaust gas recirculation cooler -V400- |
| q | Removing and installing → Chapter |
