Engine oil > < Checking oil pressure switchF1

A4 Mk3

Checking oil pressure
Checking oil pressure
Special tools and workshop equipment required

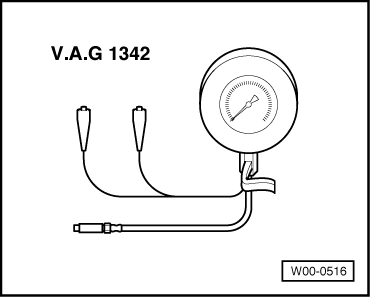

t  Oil pressure tester -V.A.G 1342-
Procedure
l  Oil level OK
l  Engine oil temperature approx. 80 °C.
–  Remove oil pressure switch -F1- → Chapter.
–  Connect oil pressure tester -V.A.G 1342- to bore for oil pressure switch.
–  Screw a used oil pressure switch into threaded hole on oil pressure tester -V.A.G 1342- to seal hole.
l  Oil pressure at idling speed: at least 0.8 bar.
l  Oil pressure at 2000 rpm: at least 1.4 bar.
  W00-0516
