Removing and installing oil filter bracket with engine oil cooler Special tools and workshop equipment required

t  Removal lever -80 - 200-

t  Used oil collection and extraction unit -V.A.G 1782-

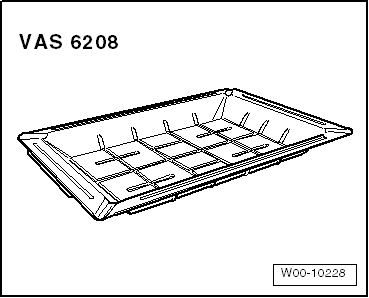

t  Drip tray for workshop hoist -VAS 6208-

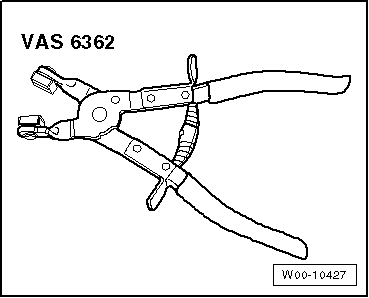

t  Hose clip pliers -VAS 6362-

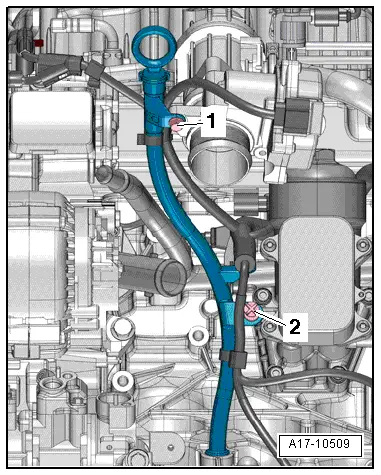

Removing –  Drain coolant → Chapter. –  Remove oil filter element → Booklet811 or → Booklet812. –  Remove coolant pipe (top left) → Chapter. –  Remove pump for exhaust gas recirculation cooler -V400- → Chapter. –  Pull oil dipstick out slightly and remove bolt -1-. –  Release clip -2- with removal lever -80 - 200-. –  Pull guide tube for oil dipstick upwards out of cylinder block and push to one side.

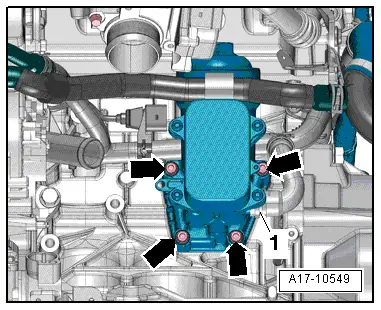

–  Place drip tray for workshop hoist -VAS 6208- under connection. –  Release hose clip -1- and detach coolant hose. –  Position used oil collection and extraction unit -V.A.G 1782- below engine. –  Unscrew bolts -arrows- and remove oil filter bracket with engine oil cooler. Installing Installation is carried out in the reverse order; note the following: l  Tightening torques → Fig. „„Oil filter bracket - tightening torque and sequence““   Note t  Renew the bolts tightened with specified tightening angle. t  Renew seal. –  Install dipstick guide tube → Chapter. –  Install pump for exhaust gas recirculation cooler -V400- → Chapter. –  Install coolant pipe (top left) → Chapter. –  Install oil filter element, fill up engine oil and check oil level → Booklet811 or → Booklet812. –  Fill up with coolant → Chapter.
