Measuring piston projection at „TDC“

Note

Piston projection at „TDC“ must be measured when installing new pistons or a short engine.

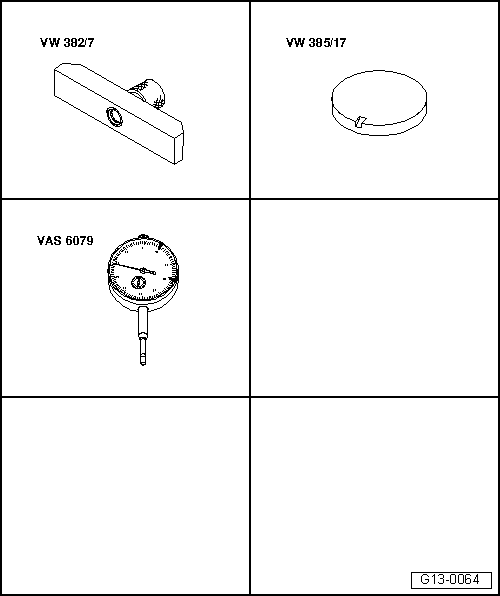

Special tools and workshop equipment required

t	Measuring bridge -VW 382/7- from measuring tool -VW 382-

t	Measuring plate -VW 385/17- from universal measuring tool -VW 385-

t	Dial gauge -VAS 6079-

Procedure

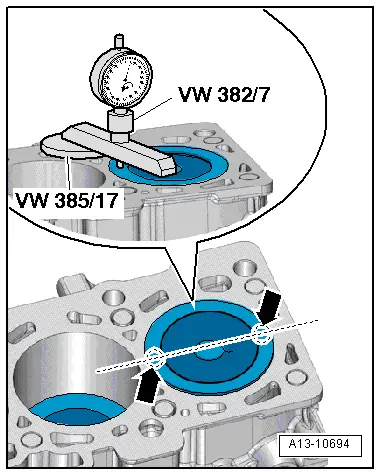

–	Secure dial gauge -VAS 6079- with measuring bridge -VW 382/7- and measuring plate -VW 385/17- to cylinder block as shown in illustration.

–	Measure piston projection at two points marked with -arrows- for each piston.

Note

If the measured values for piston projection are not the same for all pistons, use the highest value to determine the correct gasket size.

–	Depending on piston projection, install corresponding cylinder head gasket according to following table:

Piston projection above top surface of cylinder block mm	Identification (No. of holes)
0.91 … 1.00	1
1.01 … 1.10	2
1.11 … 1.20	3

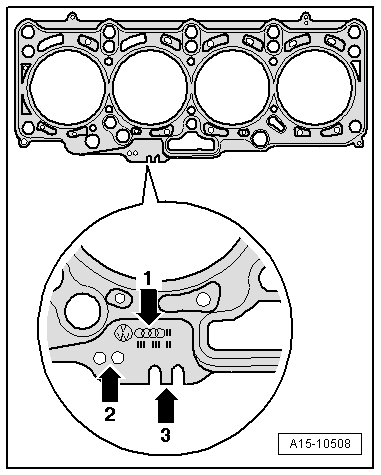

Identification of cylinder head gasket

1 -	Part number

2 -

Holes

3 -

Ignore

Note

If the measured values for piston projection are not the same for all pistons, use the highest value to determine the correct gasket size.
