A4 Mk3

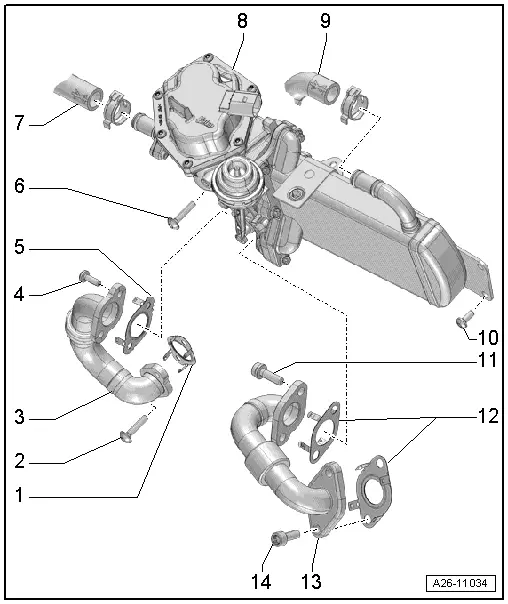

| Exhaust gas recirculation system - exploded view |
| 1 - | Gasket |
| q | Renew |
| 2 - | Bolt |
| q | 9 Nm |
| 3 - | Pipe for exhaust gas recirculation |
| 4 - | Bolt |
| q | 9 Nm |
| 5 - | Gasket |
| q | Renew |
| 6 - | Bolt |
| q | 9 Nm |
| 7 - | Coolant hose |
| 8 - | Exhaust gas recirculation cooler |
| q | With integrated exhaust gas recirculation control motor -V338- with exhaust gas recirculation potentiometer -G212- |
| q | Checking change-over function → Chapter |
| q | Removing and installing → Chapter |
| 9 - | Coolant hose |
| 10 - | Bolt |
| q | 9 Nm |
| 11 - | Bolt |
| q | 23 Nm |
| 12 - | Gaskets |
| q | Renew |
| 13 - | Pipe for exhaust gas recirculation |
| 14 - | Bolt |
| q | Coat thread with high-temperature paste; for high-temperature paste refer to → Electronic parts catalogue |
| q | 23 Nm |
