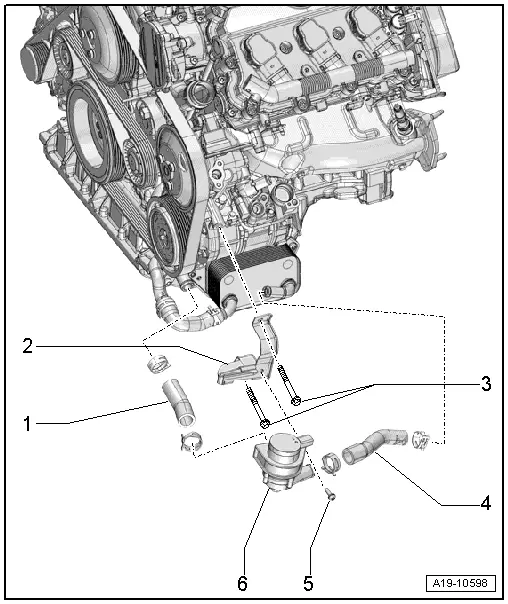

Continued coolant circulation pump -V51- - exploded view |
1 - | Coolant hose |
2 - | Bracket |
3 - | Bolts |
q | 9 Nm |
4 - | Coolant hose |
5 - | Bolt |
q | 4 Nm |
6 - | Continued coolant circulation pump -V51- |
q | Removing and installing → Chapter |
Continued coolant circulation pump -V51- - exploded view |
1 - | Coolant hose |
2 - | Bracket |
3 - | Bolts |
q | 9 Nm |
4 - | Coolant hose |
5 - | Bolt |
q | 4 Nm |
6 - | Continued coolant circulation pump -V51- |
q | Removing and installing → Chapter |
