Removing and installing balance shaft
Removing and installing balance shaft
Special tools and workshop equipment required

t  Used oil collection and extraction unit -V.A.G 1782-
Removing
l  Gearbox removed.
–  Remove sealing flange (pulley end) → Chapter.
–  Remove timing chain cover (bottom) → Chapter.
–  Remove drive chain for auxiliary drives → Chapter.
  W00-10211
–  Wrap insulating tape around tip and shaft of 8 mm Ø drill bit to avoid cuts.

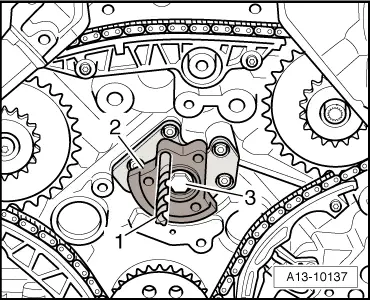

–  Hold balance weight -2- in position at rear of engine using Ø 8 mm drill bit -item 1-.
–  Unscrew bolt -3- and detach balance weight from balance shaft.
  A13-10137
–  Unscrew bolt -2- (counterhold balance weight -1- with a suitable pin) and detach balance weight at front of engine from balance shaft.
  A13-10138
–  Unscrew bolts -arrows- and detach bearing plate for balance shaft at rear of engine.
–  Pull balance shaft to rear out of cylinder block.
  A13-10139
Installing
l  Tightening torques → Chapter, → Fig..

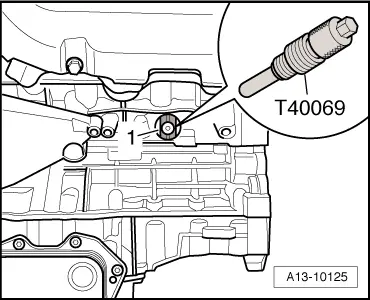

l  Crankshaft -1- locked in “TDC” position with locking pin -T40069-.
Installation is carried out in the reverse order; note the following:
  Note
Balance weights can only be fitted on balance shaft in one position.
–  Install drive chain for auxiliary drives → Chapter.
–  Install timing chain cover (bottom) → Chapter.
–  Install sealing flange (pulley end) → Chapter.
–  Fill up with engine oil and check engine oil level → Chapter.
  A13-10125
