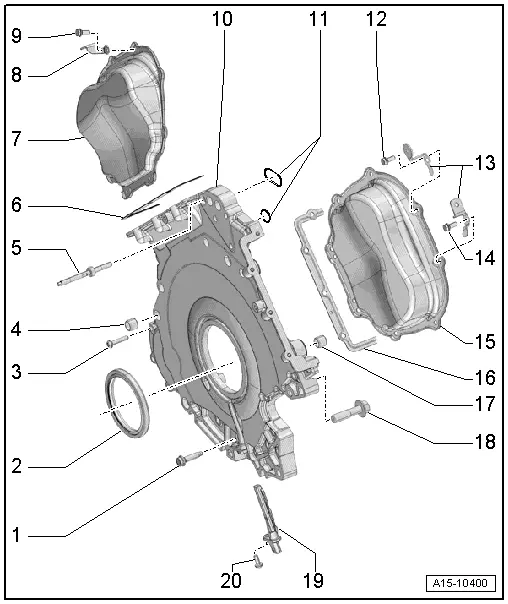

Timing chain covers - exploded view

1 -

Bolt

q	Tightening torque and sequence → Fig.

2 -	Crankshaft oil seal (gearbox end)

q	Renewing → Chapter

3 -

Bolt

q	Tightening torque and sequence → Fig.

4 -	Dowel sleeve

q

2x

5 -

Bolt

q	Tightening torque → Item

6 -	Cylinder head gasket (left-side)

7 -	Timing chain cover (left-side)

q	Removing and installing → Chapter

8 -

Bracket

q	For wiring harness

9 -

Bolt

q

Renew

q	Tightening torque and sequence → Fig.

10 -	Timing chain cover (bottom)

q	Removing and installing → Chapter

11 -

Seals

q

Renew

12 -

Bolt

q	Tightening torque and sequence → Fig.

13 -

Bracket

q	For electrical connectors

14 -

Bolt

q

Renew

q	Tightening torque and sequence → Fig.

15 -	Timing chain cover (right-side)

q	Removing and installing → Chapter

16 -	Cylinder head gasket (right-side)

17 -	Dowel sleeve

q

2x

18 -

Bolt

q	Tightening torque and sequence → Fig.

19 -	Engine speed sender -G28-

q	Removing and installing → Rep. Gr.28

20 -

Bolt

q	Tightening torque → Rep. Gr.28

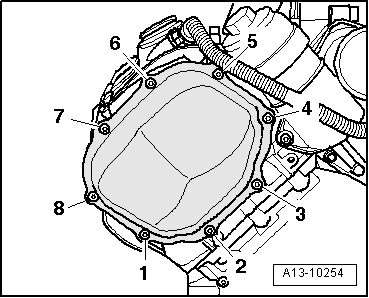

Timing chain cover (left-side) - tightening torque and tightening sequence –  Renew bolts for timing chain cover (left-side). –  Tighten bolts in the sequence -1 ... 8- in 2 stages as follows:

1.  Tighten to 5 Nm. 2.  Turn 90° further.

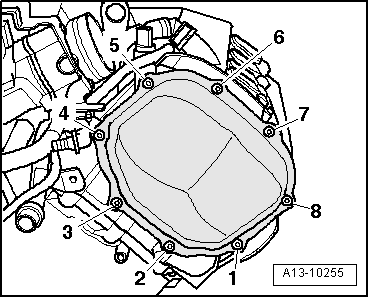

Timing chain cover (right-side) - tightening torque and tightening sequence –  Renew bolts for timing chain cover (right-side). –  Tighten bolts in the sequence -1 ... 8- in 2 stages as follows:

1.  Tighten to 5 Nm. 2.  Turn 90° further.

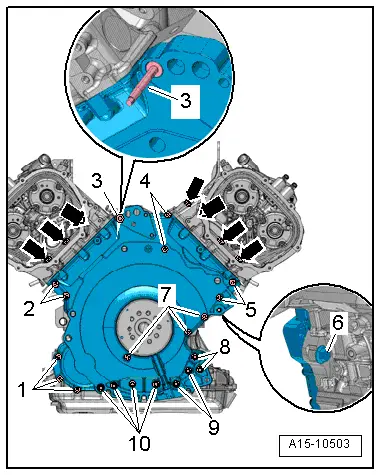

Timing chain cover (bottom) - tightening torque and tightening sequence –  Tighten bolts in 6 stages as follows:

1.  Fit bolts -arrows- and initially tighten to 5 Nm. 2.  Tighten bolts -1 ... 10- in diagonal sequence to 9 Nm. 3.  Tighten bolts -arrows- to 9 Nm. 4.  Tighten bolts -8, 9, 10- to 22 Nm. 5.  Tighten bolt -3- to 16 Nm. 6.  Tighten bolt -6- to 70 Nm.
