Removing and installing oil pump
Removing and installing oil pump
Removing and installing oil pump
Removing
–
Remove sump (bottom section)
→ Chapter
.
–

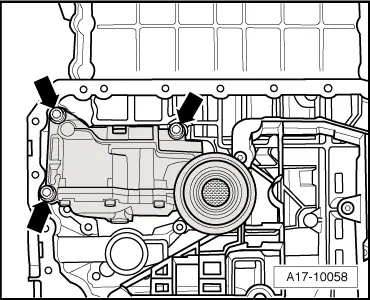

Remove bolts
-arrows-
.
–
Pull oil pump forwards off drive shaft.
Installing
l
Tightening torque
→ Chapter
.
Installation is carried out in the reverse order; note the following:
Note
Fit new O-rings.
–
Fit oil pump onto drive shaft and tighten bolts.
–
Install sump (bottom section)
→ Anchor
.
–
Fill up with engine oil and check engine oil level
→ Booklet811
,
→ Booklet812
or
→ Booklet818
.
