Removing and installing front silencer
Removing and installing front silencer

Removing

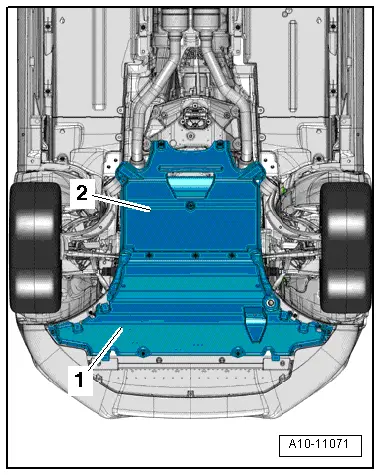

–  Remove rear noise insulation panel -2- → Rep. Gr.66.
  A10-11071
–  If fitted, remove bolts -arrows- and detach front cross member.
  A26-10532

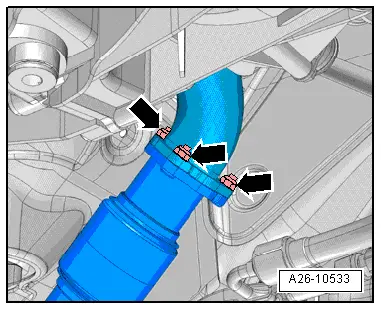

–  Unscrew nuts -arrows- for front silencer (left-side).
  A26-10533

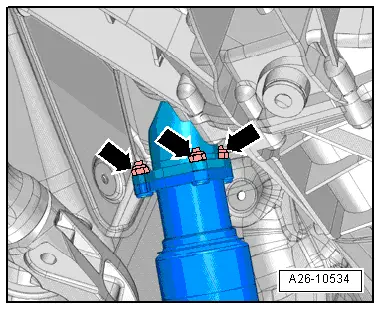

–  Unscrew nuts -arrows- for front silencer (right-side).
  A26-10534
  Caution
Risk of damage to flexible joints in front silencer.
Do NOT bend the flexible joints in the front silencer more than 10°.

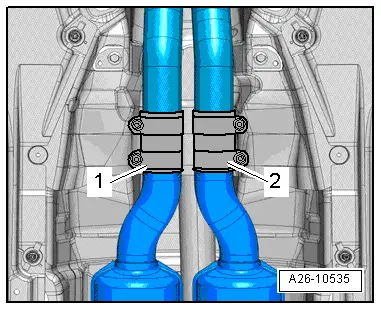

–  Release and push back clamp -1- or -2- and detach relevant front silencer.
Installing
l  Tightening torque → Chapter.
Installation is carried out in the reverse order; note the following:
  Note
Renew gaskets and self-locking nuts.
–  Align the exhaust system so it is free of stress → Chapter.
–  Install front cross member → Rep. Gr.66.
–  Install rear noise insulation → Rep. Gr.66.
  A26-10535
