A4 Mk3

Renewing tailpipe
Renewing tailpipe
Special tools and workshop equipment required

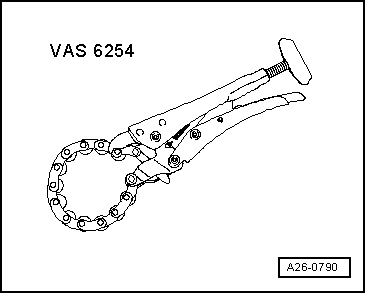

t  Chain-type pipe cutter -VAS 6254-
  A26-0790
Procedure
l  Tightening torque → Chapter.

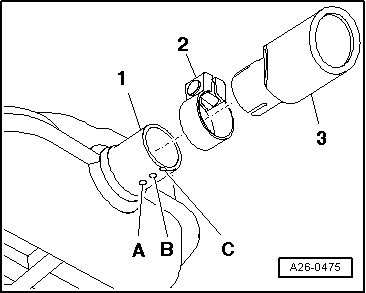

–  Cut through tailpipe -1- with chain-type pipe cutter -VAS 6254- at the position marked -C-.
–  Push new tailpipe -3- onto tailpipe as far as marking -A-. Slot on tailpipe should align with marking -B-.
–  Tighten nut for clamp -2-.
  A26-0475
