A4 Mk3
Power unit
6-cylinder direct petrol injection engine with supercharger (3.0 ltr. 4-valve), mechanics
Engine lubrication
Oil retention valves, oil separator
Removing and installing cover with oil separator
Removing and installing cover with oil separator
Removing and installing cover with oil separator
Removing
–
Remove crankcase breather hoses
→ Chapter
.
–
Remove coolant pipe (top)
→ Chapter
.
–
Remove intake manifold bottom section (left-side)
→ Rep. gr.24
.
–

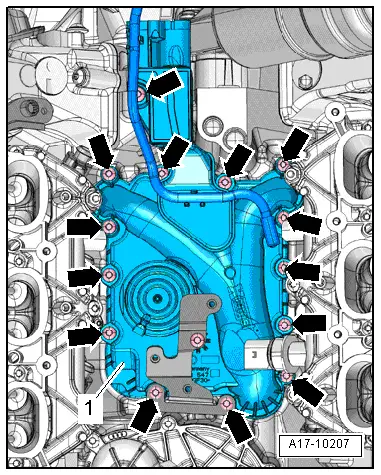

Remove bolts
-arrows-
.
–
Detach bracket for high-pressure pipes and cover
-1-
with oil separator.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torques
→ Chapter „Oil retention valves, oil separator - exploded view“
Note
Renew gasket.
–
Install intake manifold (bottom section)
→ Rep. gr.24
.
–
Install coolant pipe (top)
→ Chapter
.
–
Install crankcase breather hoses
→ Chapter
.
