A4 Mk3
Power unit
6-cylinder direct petrol injection engine with supercharger (3.0 ltr. 4-valve), mechanics
Exhaust system
Exhaust manifold
Removing and installing exhaust manifold (right-side)
Removing and installing exhaust manifold (right-side)
Removing and installing exhaust manifold (right-side)
Removing
Note
Fit all cable ties in the original positions when installing.
–
Remove noise insulation panels
-1-
and
-2-
→ Rep. gr.66
.
–
Move fuel hose
-1-
and hose
-2-
from activated charcoal filter clear at air pipe.
–
Detach vacuum hose
-3-
from connection on air pipe.
–

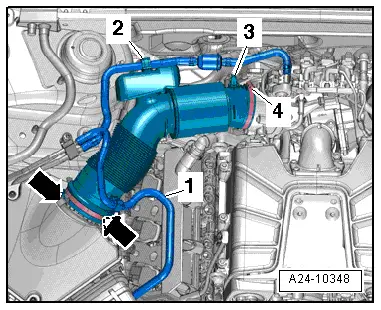

Remove air pipe. To do so, release hose clip
-4-
and clamps
-arrows-
.
–
Remove plenum chamber partition panel
→ Rep. gr.50
.
–

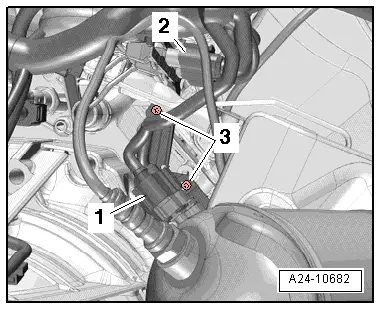

Take electrical connector
-1-
for Lambda probe after catalytic converter -G130- out of bracket, unplug and move wiring clear.
Note
Disregard
-items 2, 3-
.
–
Remove front silencer (right-side)
→ Chapter
.
–

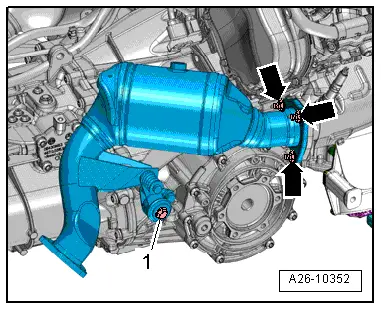

Remove bolt
-1-
and nuts
-arrows-
and push catalytic converter clear towards right side.
Note
For illustration purposes, the installation position is shown with the engine removed.
–
Remove front wheel (right-side)
→ Wheels and tyres; Rep. gr.44
.
–
Remove front wheel housing liner (right-side)
→ Rep. gr.66
.
–
Remove nut
-1-
and bolt
-2-
and push coolant pipe clear to one side.
–

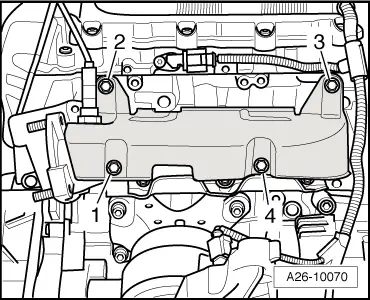

Remove bolts
-1 … 4-
and detach heat shield.
–
Remove nuts
-7-
and
-9-
and detach bracket for heat shield.
–

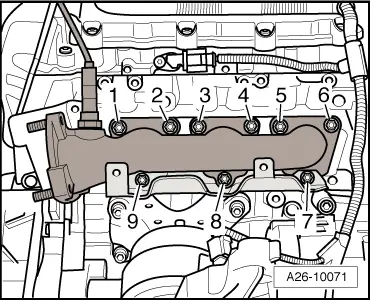

Remove nuts
-1 … 6-
and
-8-
and detach exhaust manifold.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torques

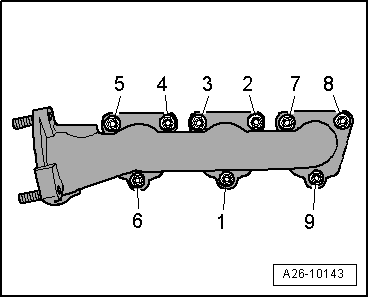

→ Fig. „„Exhaust manifold (right-side) - tightening torque and sequence““
Note
t
Renew gaskets and self-locking nuts.
t
Hose connections and air pipes and hoses must be free of oil and grease before assembly.
t
Secure all hose connections with the correct type of hose clips (same as original equipment)
→ Electronic parts catalogue
.
t
To secure the air hoses at their connections, spray rust remover onto the worm thread of the used hose clips before installing.
–
Fit exhaust manifold with gasket for catalytic converter and tighten nuts
→ Fig.
.
–
Install front wheel housing liner
→ Rep. gr.66
.
–
Fit front wheel
→ Wheels and tyres; Rep. gr.44
.
–
Install catalytic converter (right-side)
→ Chapter
.
–
Install front silencer
→ Chapter
.
–
Install plenum chamber partition panel
→ Rep. gr.50
.
–
Install noise insulation panels
→ Rep. gr.66
.
Power unit
6-cylinder direct petrol injection engine with supercharger (3.0 ltr. 4-valve), mechanics
Exhaust system
Exhaust manifold
Removing and installing exhaust manifold (right-side)
